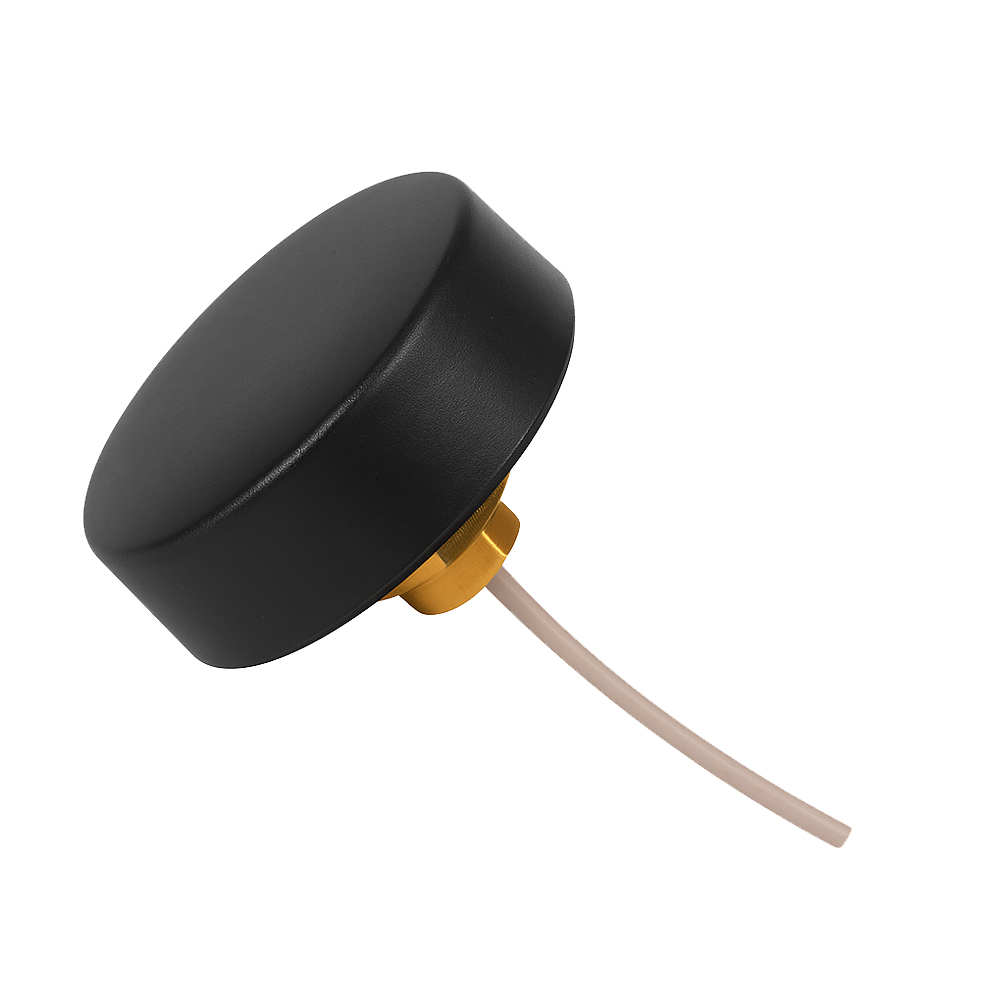

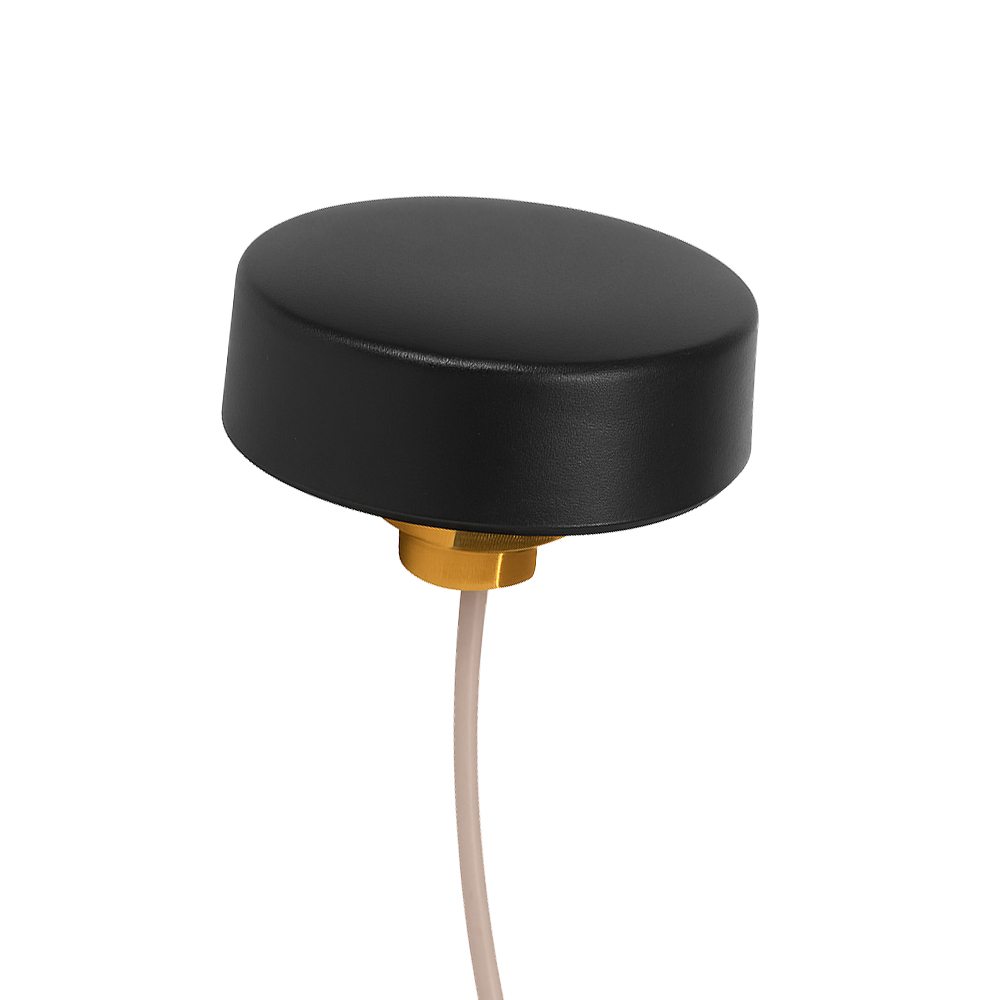

CX-AP16B

UAV-FPW Antenna Drone Transmission

  • Frequency Range: 2.4–2.5 GHz
  • Polarization: Circular (RHCP)
  • Gain: 5 dBi (typical)
  • Impedance: 50 Ω
  • VSWR: ≤ 1.5
  • Connector Type: SMA Male (gold-plated)
  • Cable Type: RG1.37 / 15 cm (customizable)
  • Dimensions: Ø 30 × 15 mm
  • Housing Material: ABS with weather-resistant coating
  • Operating Temperature: -40°C to +85°C
  • Mounting: Threaded base or adhesive mount option
  • Applications: Drone communication systems, UAV telemetry, FPV transmission, and GPS/GNSS positioning.


Descritption CX-AP16B

The CX-AP16B UAV-FPW Antenna is a high-performance circularly polarized antenna designed for drone data transmission and GPS applications. Built with durable materials and precision RF components, it ensures stable connectivity, reduced interference, and consistent performance during flight operations. Its compact, lightweight structure makes it ideal for UAV integration and long-range communication links.
