CX-AP16D

UAV-FPW Antenna Drone Transmission

Frequency Range: 5.8 GHz
Polarization: Right-Hand Circular Polarization (RHCP) / Left-Hand Circular Polarization (LHCP) (optional)
Gain: 2.5–3.0 dBi
VSWR: ≤ 1.5:1
Impedance: 50 Ω
Connector Type: SMA Male (optional MMCX or RP-SMA available)
Cable Type: RG178 or RG316, customizable length
Housing Material: Durable ABS with weather-resistant coating
Dimensions: Compact lightweight design for drone integration
Application: FPV drones, UAV telemetry, wireless video transmission, and communication systems
Operating Temperature: -40°C to +85°C

Enquire Now

Download Specification

Descritption CX-AP16D

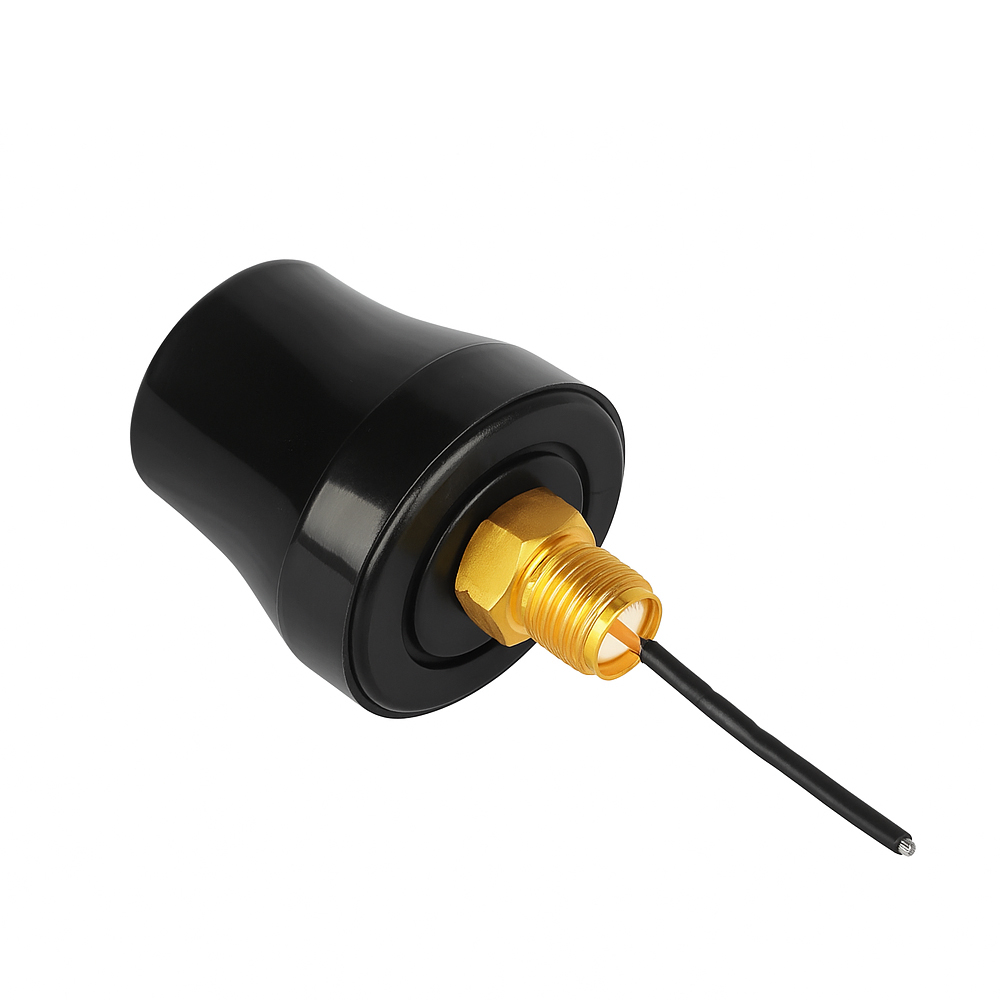

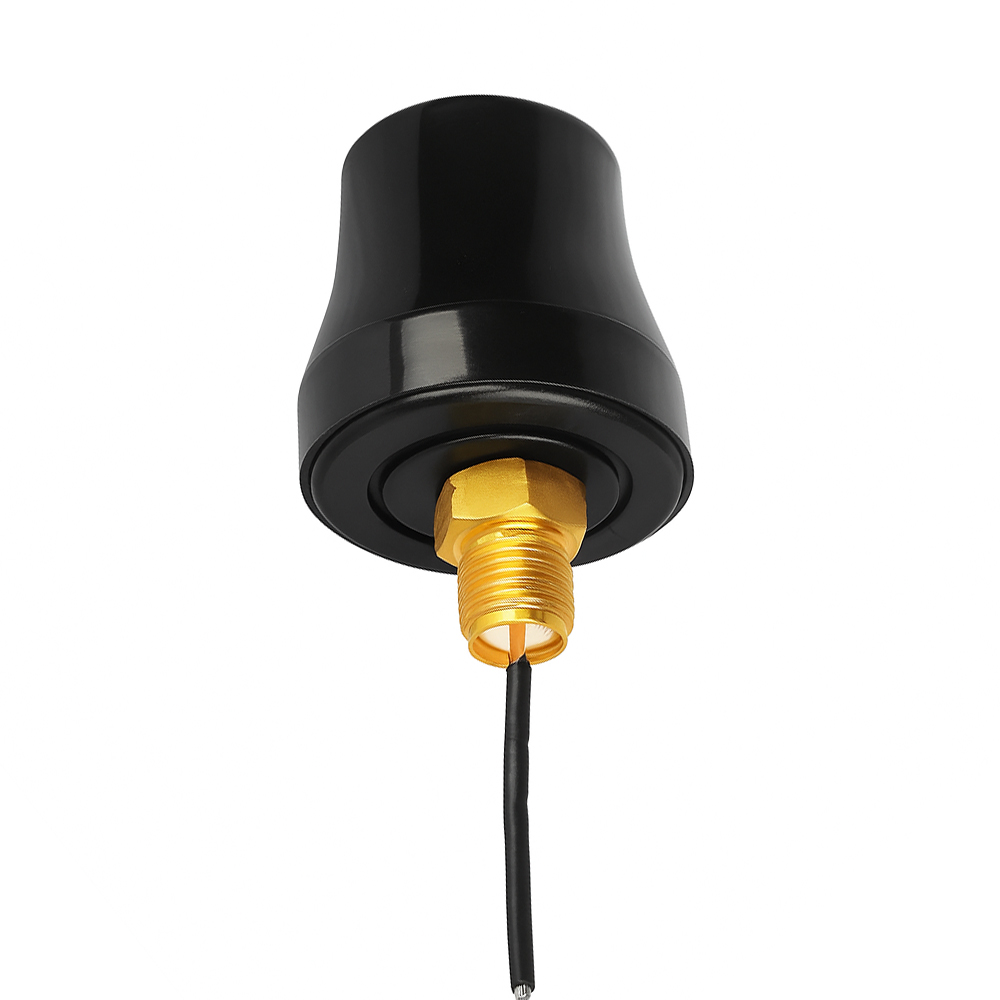

The CX-AP16D UAV-FPW Antenna is a high-performance, circularly polarized antenna designed for drone transmission and reception applications. It offers reliable long-range communication, stable signal strength, and robust design suitable for UAVs, FPV systems, and other wireless transmission devices. Its compact build and strong housing ensure consistent performance even in demanding environments.
