CX-AP35A

Glue Stick Antenna

Frequency Range: 824–960 MHz / 1710–2170 MHz (Dual-band)
Gain: 3 dBi
Impedance: 50 Ω
VSWR: ≤ 2.0
Antenna Material: Rubberized ABS body
Length: Approx. 80mm – 100mm
Operating Temperature: -40°C to +85°C
Mounting Style: Screw-in via SMA interface
Applications: GSM / 3G / 4G LTE / IoT / M2M / Telemetry / Industrial Wireless Devices

Enquire Now

Download Specification

Descritption CX-AP35A

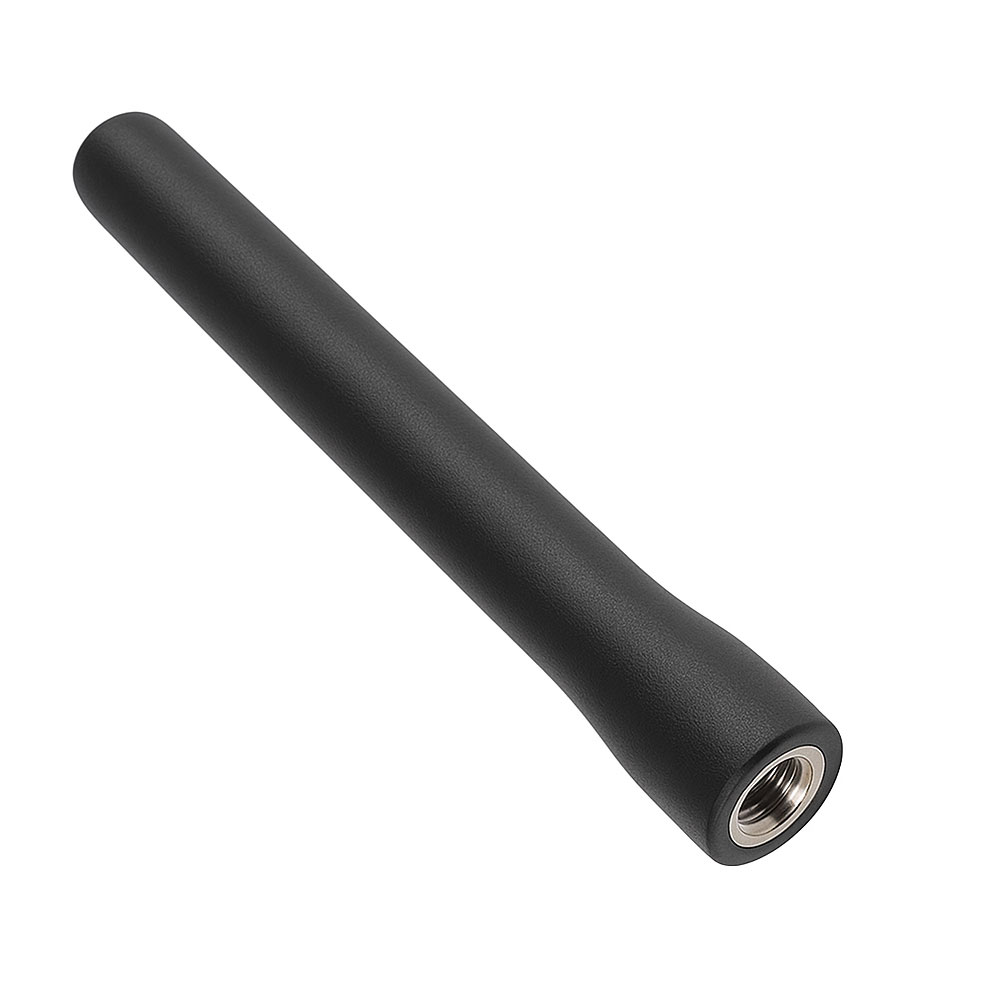

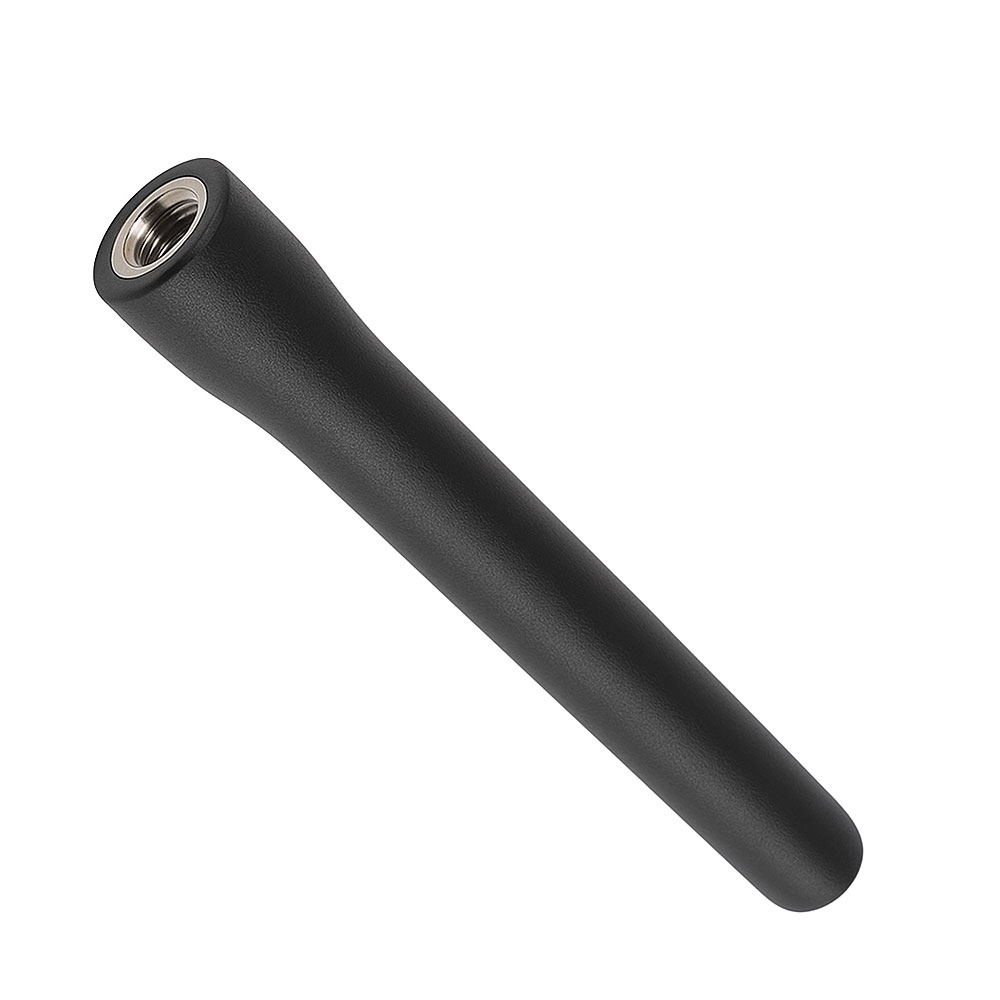

The CX-AP35A Glue Stick Antenna is a slim, high-gain antenna featuring a black cylindrical design and a durable SMA female connector. Ideal for wireless communication applications such as GSM, LTE, and IoT, it offers strong signal performance in a compact form factor.
