CX-AP48

UAV-FPW Antenna Drone Transmission

Frequency Range: 5.8 GHz
Antenna Type: Circularly Polarized (CP) / FPV Transmission Antenna
Polarization: Right-Hand Circular Polarization (RHCP) / Left-Hand CP (Optional)
Gain: 2–3 dBi Typical
VSWR: ≤ 1.8
Radiation Pattern: Omni-directional
Connector Type: SMA / RP-SMA / IPEX (Optional)
Cable Type: Low-loss flexible coaxial
Cable Length: Customizable upon request
Housing Material: Durable ABS / Composite RF Material
Weight: Lightweight for reduced drone load
Operating Temperature: -40°C to +85°C
Application: UAV FPV Transmission, Drone Video Systems, Wireless Control Links

Enquire Now

Download Specification

Descritption CX-AP48

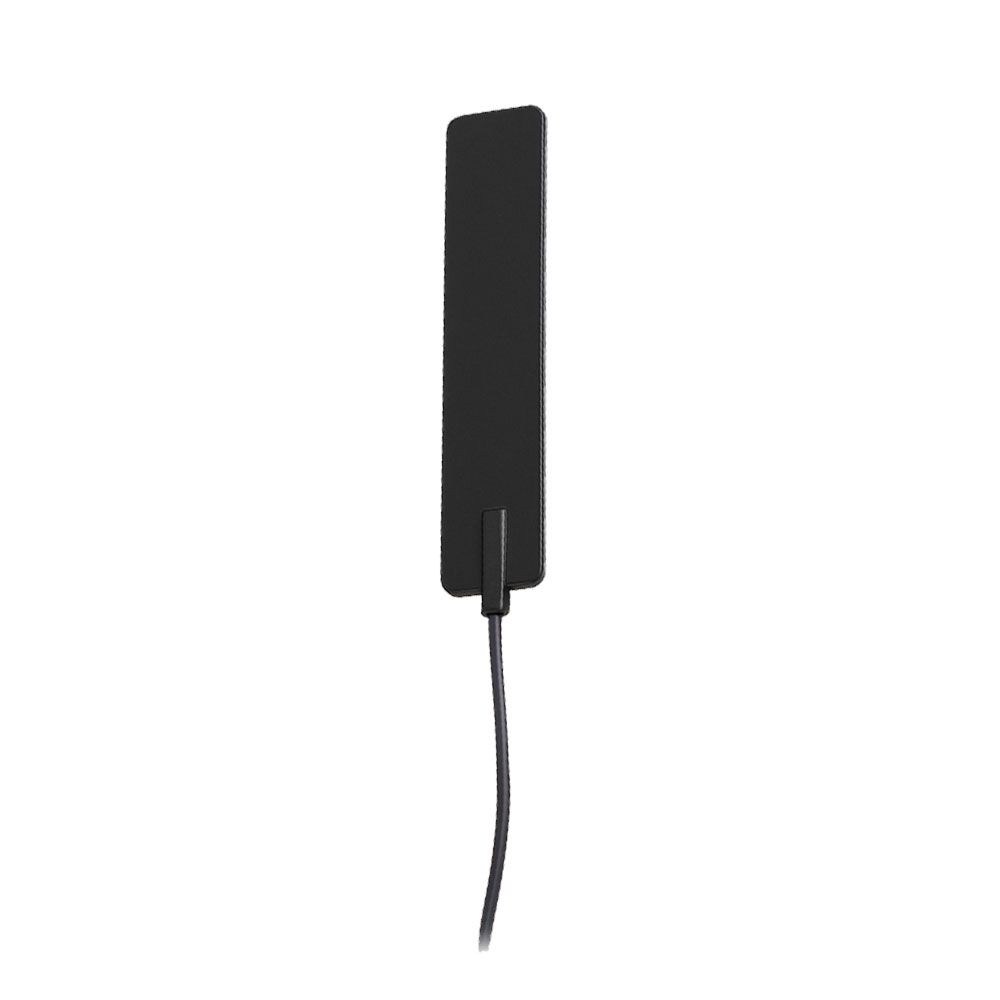

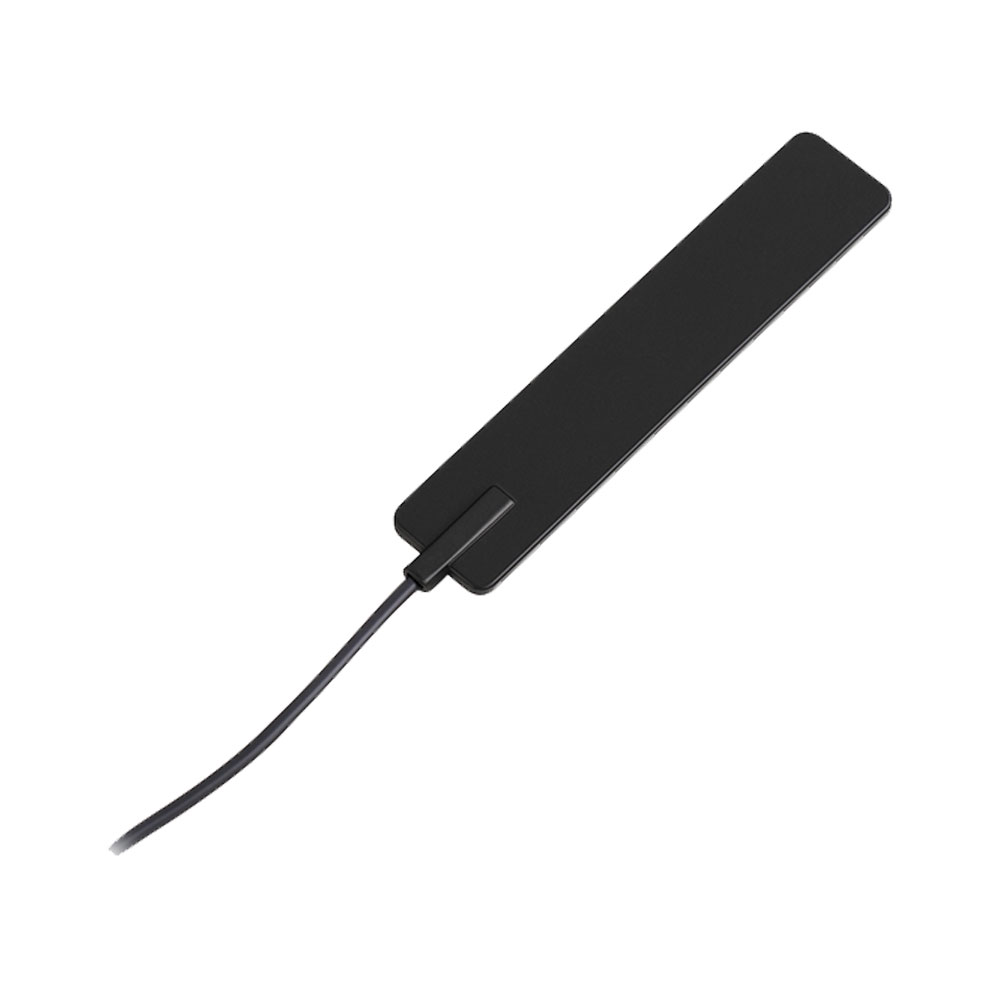

The CX-AP48 is a high-efficiency UAV FPV antenna designed to deliver stable long-range video transmission for drones and FPV systems. With a balanced lightweight structure and precision RF tuning, it ensures enhanced signal penetration and reduced interference, making it suitable for racing drones, aerial photography drones, and long-distance flight operations.
