CX-AP72

UAV-FPW Antenna Drone Transmission

  • Frequency Range: 5725–5850 MHz (5.8 GHz Band)
  • Polarization: Right-Hand Circular Polarization (RHCP)
  • Gain: 7.2 dBi
  • VSWR: ≤ 1.5:1
  • Impedance: 50 Ω
  • Radiation Pattern: Directional, optimized for long-range FPV and UAV communication
  • Connector Type: SMA Male (RP-SMA / MMCX optional)
  • Cable Type: RG316 / RG141 (customizable lengths available)
  • Material: High-strength ABS housing with weatherproof coating
  • Dimensions: Compact and lightweight for drone or ground station integration
  • Operating Temperature: -40°C to +85°C
  • Applications: FPV drone transmission, UAV telemetry, wireless video systems, long-range data links


Descritption CX-AP72

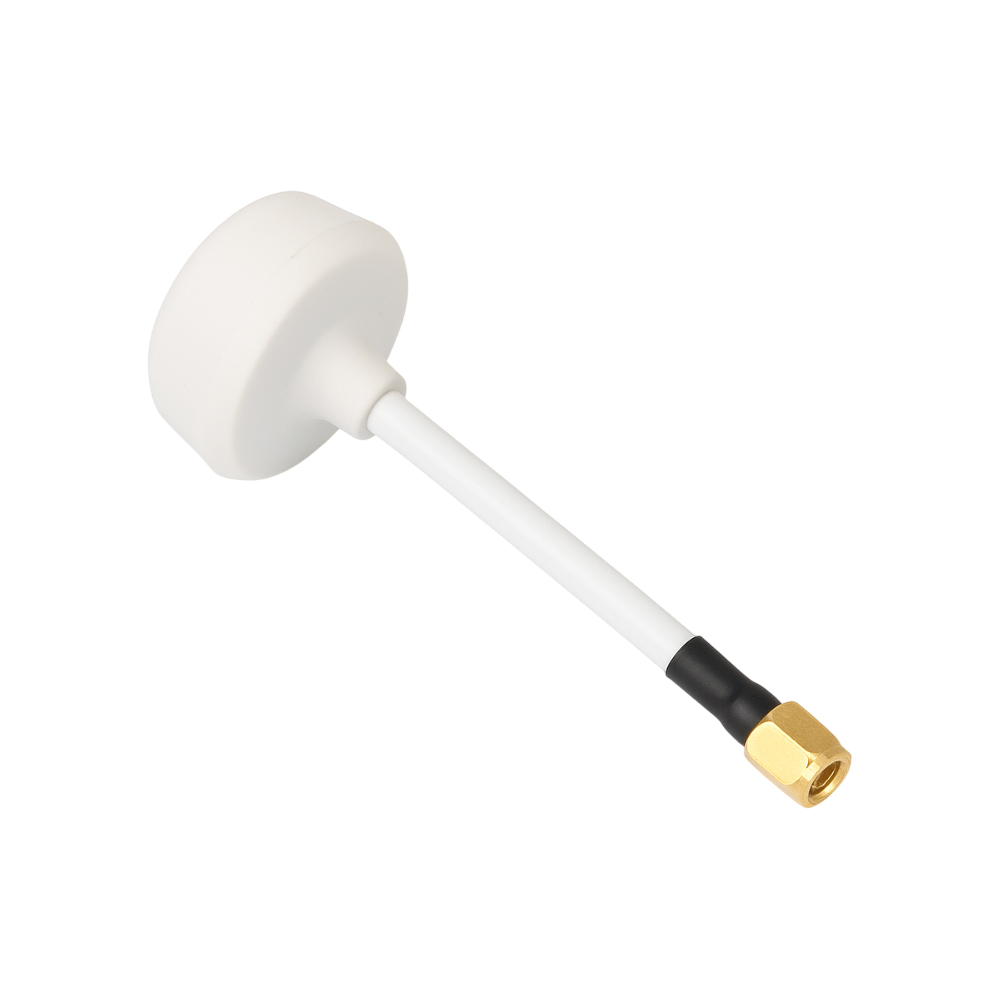

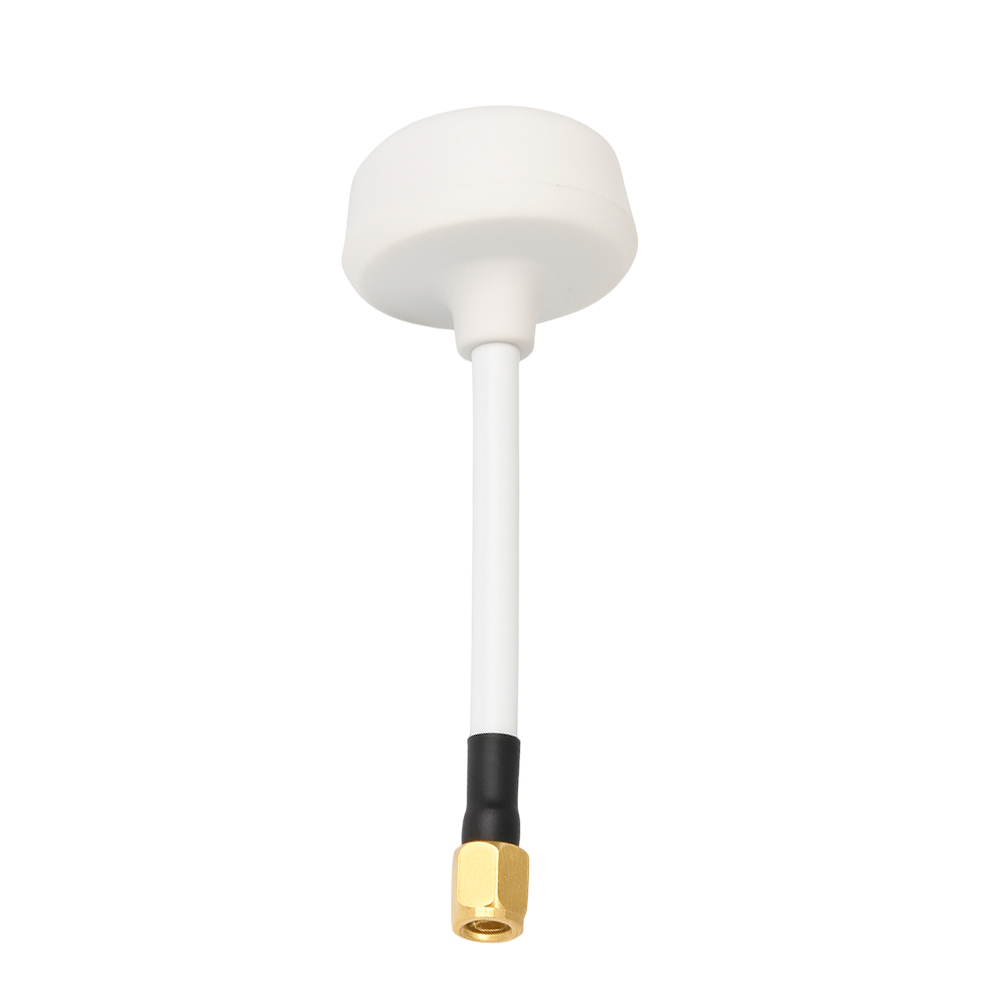

The CX-AP72 UAV-FPW Antenna is a high-gain circularly polarized antenna engineered for professional drone transmission and FPV applications. It delivers robust, stable signal performance over long distances, minimizing interference and multipath distortion. Designed for both airborne and ground station setups, the CX-AP72 ensures exceptional link reliability and signal clarity, even in challenging environments.
