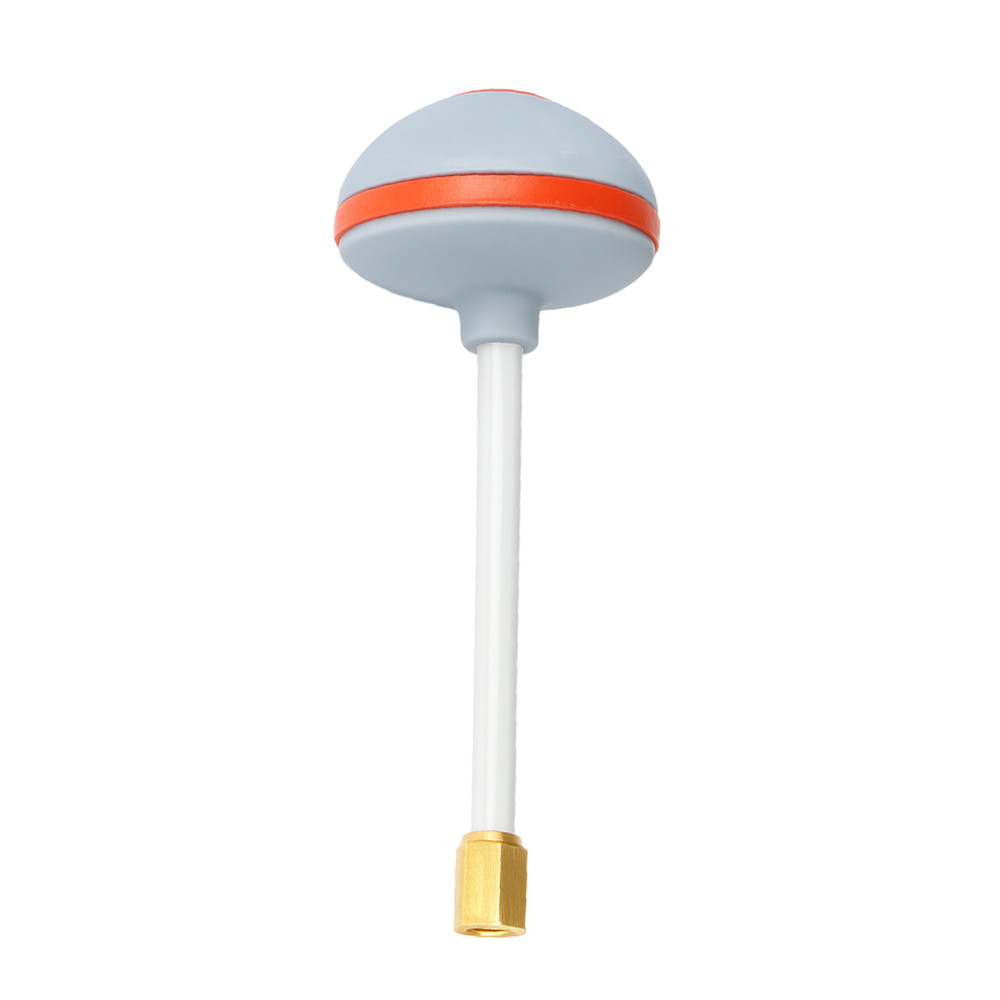

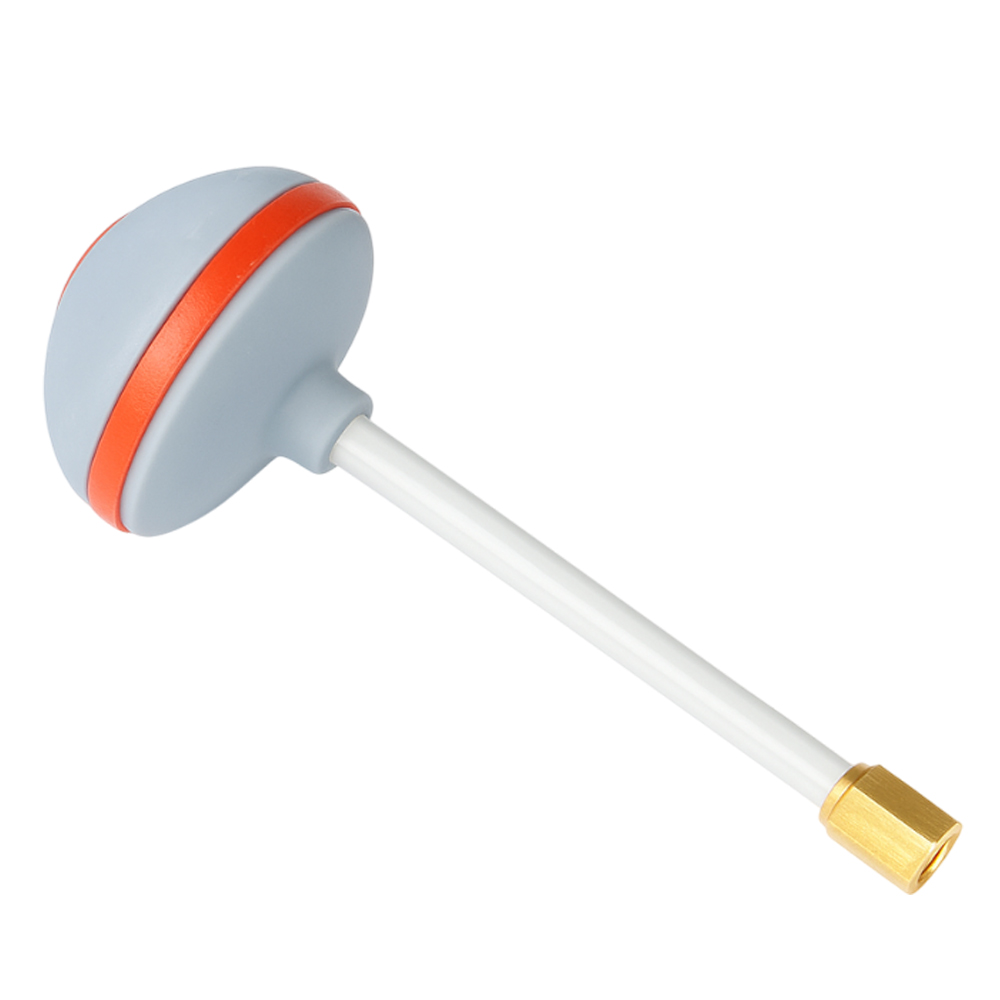

CX-AP72A

UAV-FPW Antenna Drone Transmission

  • Frequency Range: 5725–5850 MHz (5.8 GHz Band)
  • Polarization: Right-Hand Circular Polarization (RHCP)
  • Gain: 7.2 dBi
  • VSWR: ≤ 1.5:1
  • Impedance: 50 Ω
  • Radiation Pattern: Directional, optimized for long-range communication
  • Connector Type: SMA Male (optional RP-SMA / MMCX available)
  • Cable Type: RG141 / RG316 (custom length options)
  • Material: Durable ABS radome with UV and weather resistance
  • Dimensions: Compact low-drag profile for drone mounting
  • Operating Temperature: -40°C to +85°C
  • Applications: Drone video transmission, telemetry systems, UAV control, FPV racing


Descritption CX-AP72A

The CX-AP72A UAV-FPW Antenna is a high-performance circularly polarized antenna specifically designed for long-range drone and FPV (First Person View) transmission systems. It provides exceptional signal stability, low latency, and high gain, ensuring clear, uninterrupted data or video transmission between the drone and ground control. With its rugged, weatherproof design and precision tuning, it is ideal for demanding aerial and outdoor applications.
