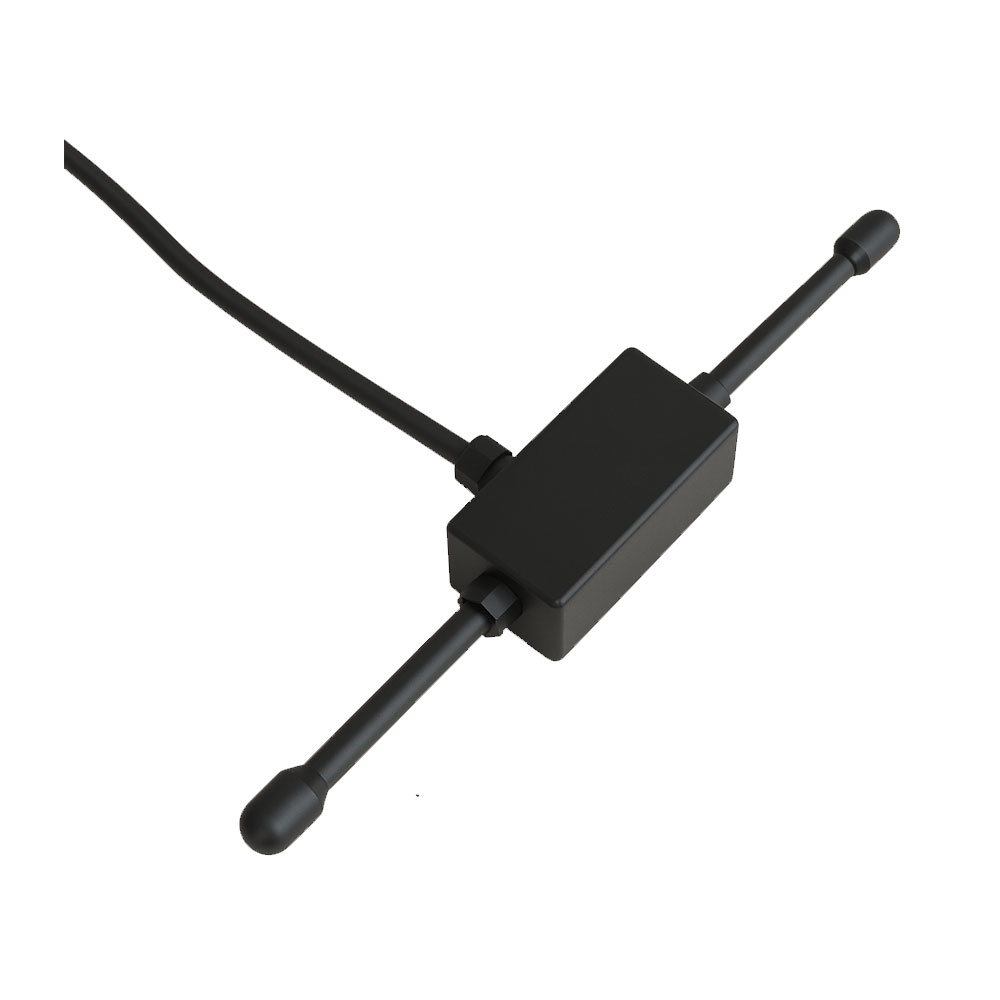

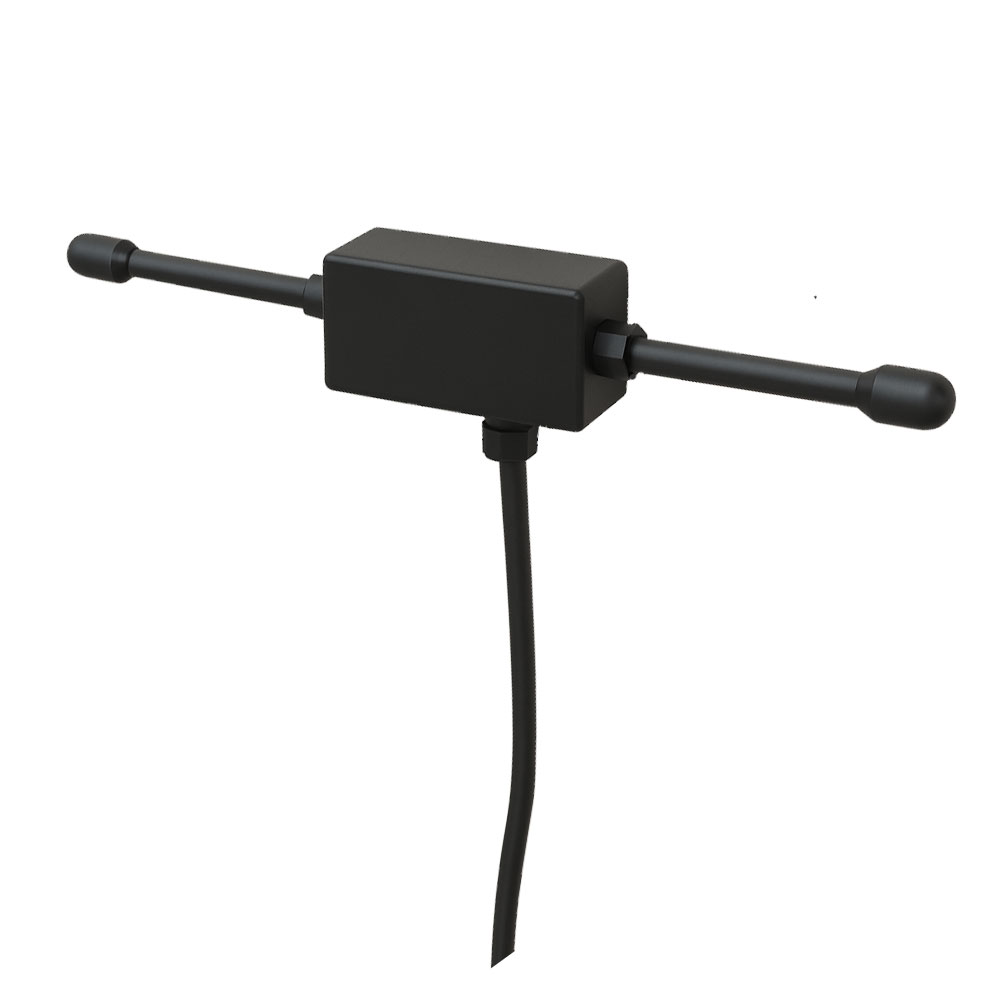

CX-AP76

UAV-FPW Antenna Drone Transmission

Frequency Range: 5.8 GHz (Standard FPV Band)
Antenna Type: Omni-directional FPV Aerial Transmission Antenna
Gain: 2–5 dBi (Depending on model variant)
Polarization: Circular Polarized (RHCP/LHCP Optional)
Impedance: 50 Ω
VSWR: ≤ 1.8
Connector Type: MMCX / SMA / RP-SMA / U.FL (Optional)
Cable Type: Low-loss Semi-Flexible RF Coax
Radiation Pattern: 360° Omni coverage for stable FPV link
Material: Lightweight ABS + RF PCB internal structure
Operating Temperature: -20°C to +85°C
Weight: Ultra-Light for UAV balance optimization
Applications: FPV Racing Drones, Long-range UAV, FPV Goggles, Drone Video Transmit/Receive Systems

Enquire Now

Download Specification

Descritption CX-AP76

The CX-AP76 is a lightweight and high-efficiency UAV FPV antenna designed specifically for drone video transmission and telemetry systems. Its optimized radiation pattern ensures stable signal coverage in both mid-range and far-range flights. The compact form factor reduces air resistance, making it ideal for FPV racing drones, aerial photography platforms, fixed-wing aircraft, and UAV communication modules. Constructed with durable RF materials, it offers consistent performance and excellent interference resistance.
