CX-AP85

Glue Stick Antenna

Frequency Range: 2400–2500 MHz / 5150–5850 MHz (Dual Band)
Gain: 5 dBi
Polarization: Vertical
VSWR: ≤ 2.0
Impedance: 50 Ω
Connector Type: SMA Male / RP-SMA Male (customizable)
Radiation Pattern: Omnidirectional
Antenna Length: ~180 mm
Material: ABS housing with UV resistance
Operating Temperature: -40°C to +80°C
Application: Wi-Fi, Bluetooth, Zigbee, and ISM band wireless systems

Enquire Now

Download Specification

Descritption CX-AP85

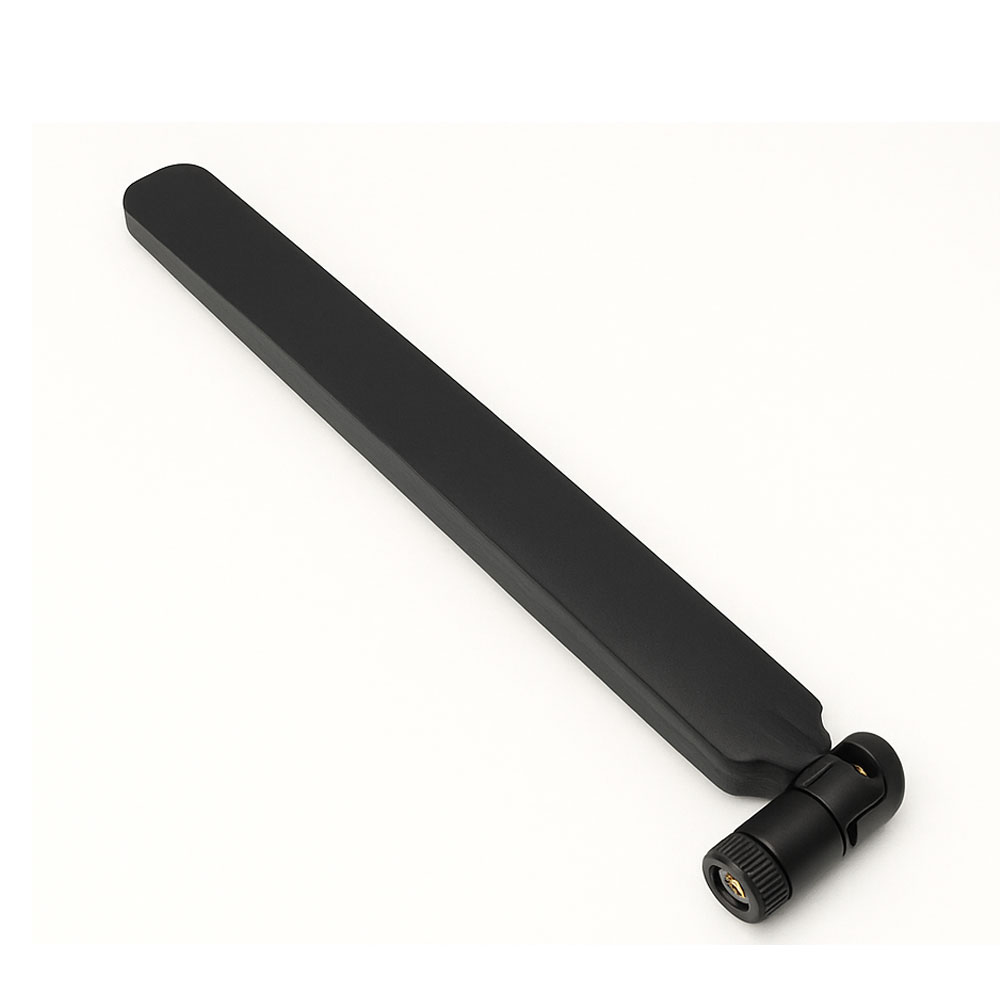

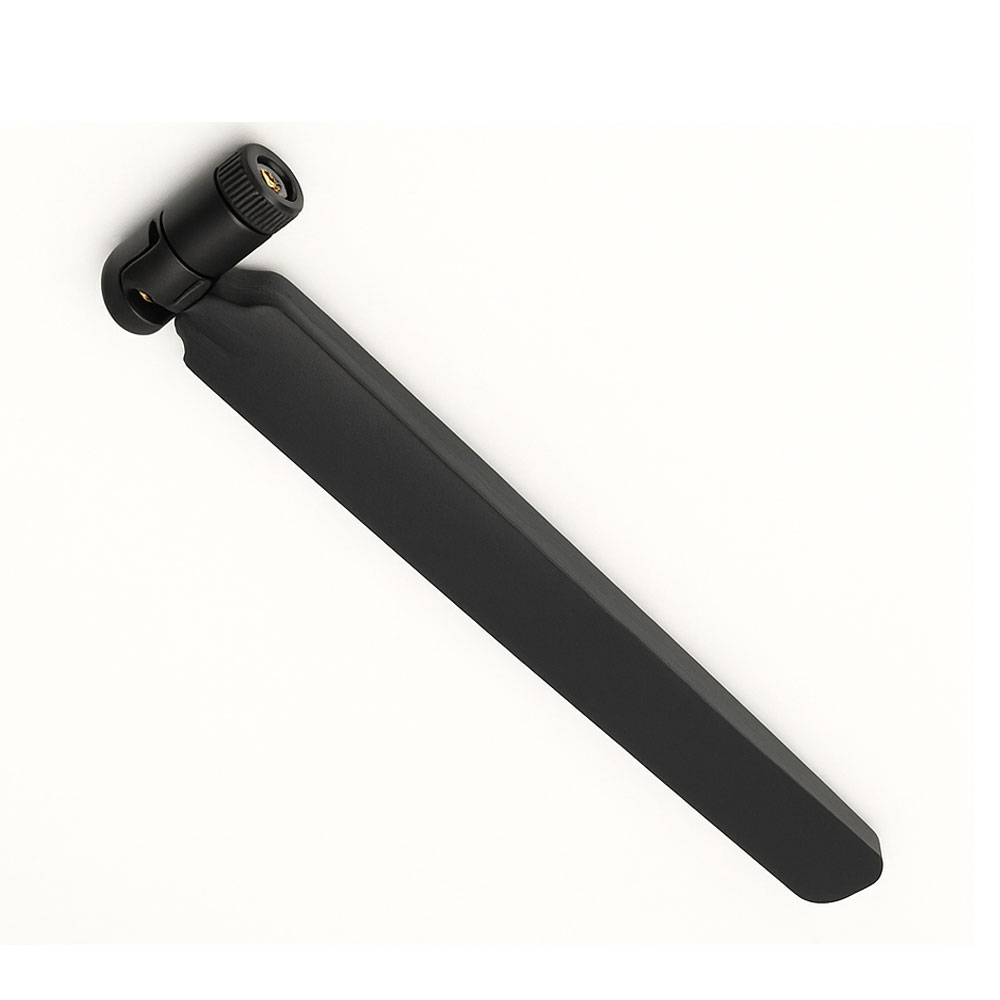

The CX-AP85 Glue Stick Antenna is a high-performance, omnidirectional antenna designed for stable and efficient wireless communication. Its slim, glue-stick-style body offers a sleek appearance, while delivering enhanced signal coverage and consistent performance for applications such as routers, IoT devices, and wireless modules.
