CX-MT01

UAV-FPW Antenna Drone Transmission

Frequency Range: 5.8 GHz
Antenna Type: Monopole Transmission Antenna
Polarization: Linear Polarization
Gain: 2–3 dBi (Typical)
VSWR: ≤ 1.8
Connector Type: SMA / RP-SMA / IPEX Optional
Cable Type: Low-loss Coaxial
Cable Length: Customizable
Construction Material: Durable ABS Housing + Flexible RF Lead
Operating Temperature: -40°C to +85°C
Applications: FPV Drone Video Transmission, UAV Control Link, Wireless Module Communication

Enquire Now

Download Specification

Descritption CX-MT01

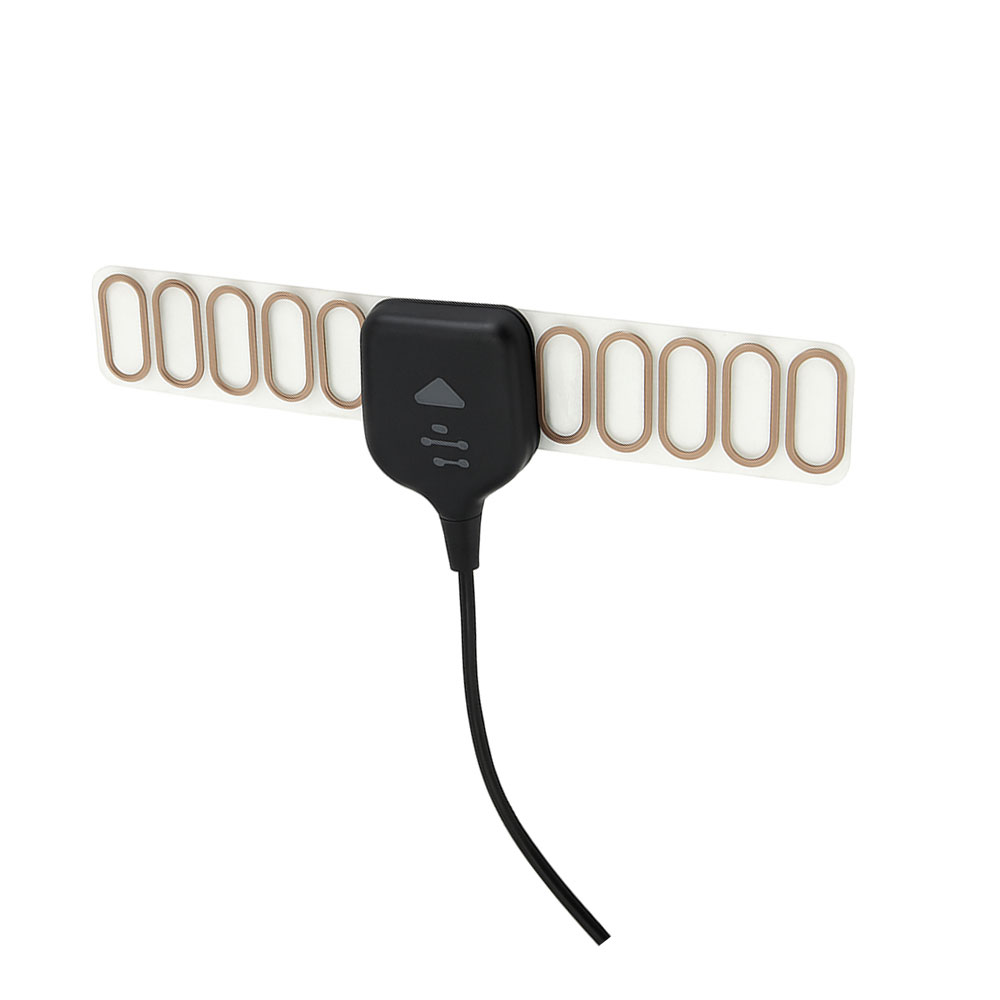

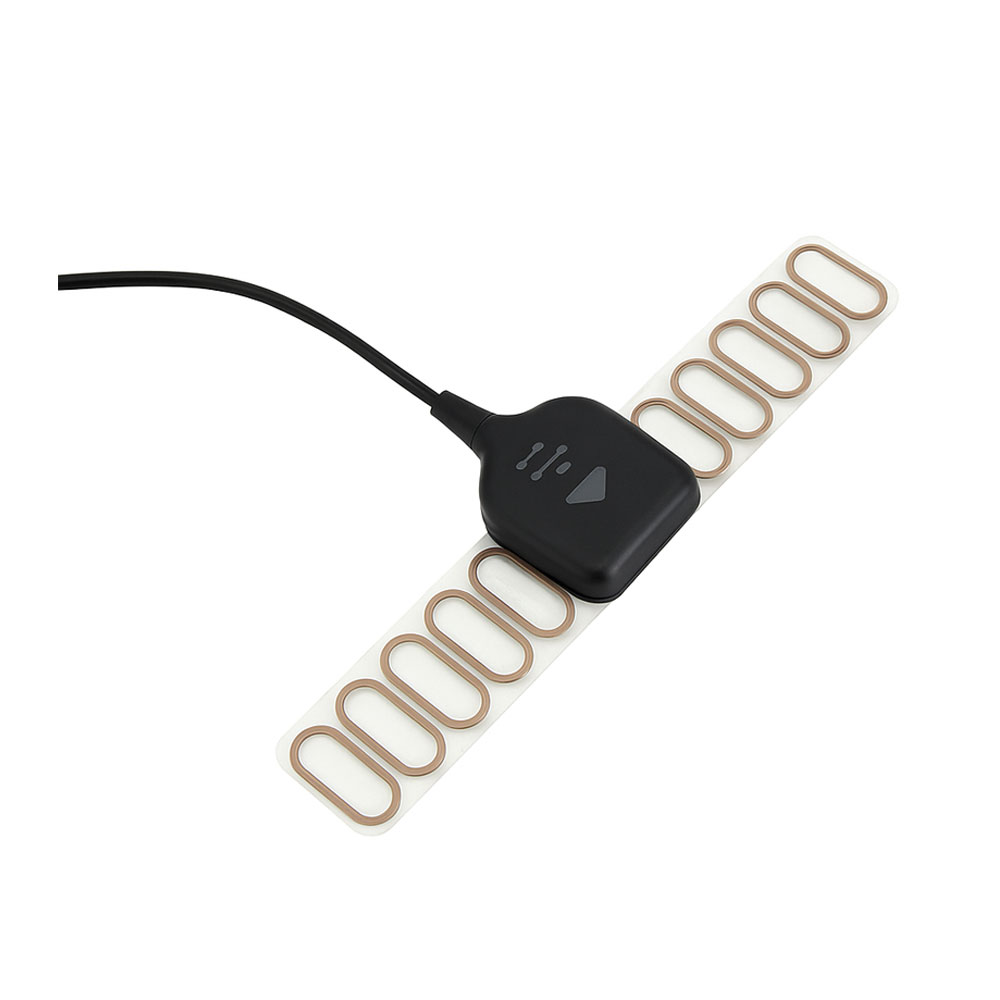

The CX-MT01 is a high-efficiency monopole FPV antenna designed for UAV and drone transmission systems. It delivers stable signal coverage with low loss and wide compatibility, making it suitable for medium-range drone video links and control communication. Its lightweight structure supports improved flight endurance and easy installation across various drone frames.
