CX-MT03

UAV-FPW Antenna Drone Transmission

Frequency Range: 5.8 GHz
Antenna Type: Omni-Directional FPV Transmission Antenna
Polarization: Linear / RHCP / LHCP (Optional)
Gain: 2–2.5 dBi Typical
VSWR: ≤ 1.8
Input Impedance: 50 Ω
Connector Type: SMA / RP-SMA / IPEX (Optional)
Cable Type: Low-loss coaxial cable
Cable Length: Customizable as per application
Radiation Pattern: 360° Omni
Material: RF optimized composite with durable exterior
Mounting Style: Direct connector mount or cable extension
Operating Temperature: -40°C to +85°C
Applications: FPV Drone Video Transmission, UAV Telemetry, RC Transmitter/Receiver Systems

Enquire Now

Download Specification

Descritption CX-MT03

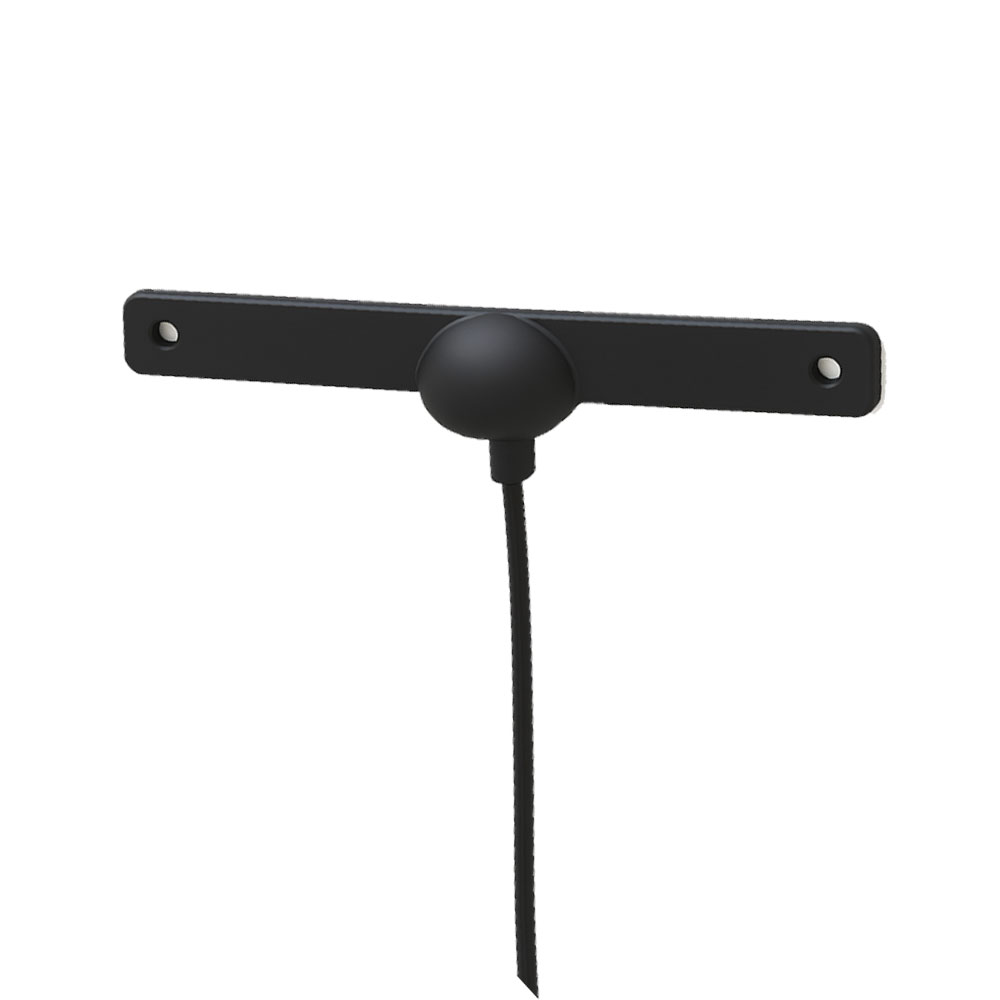

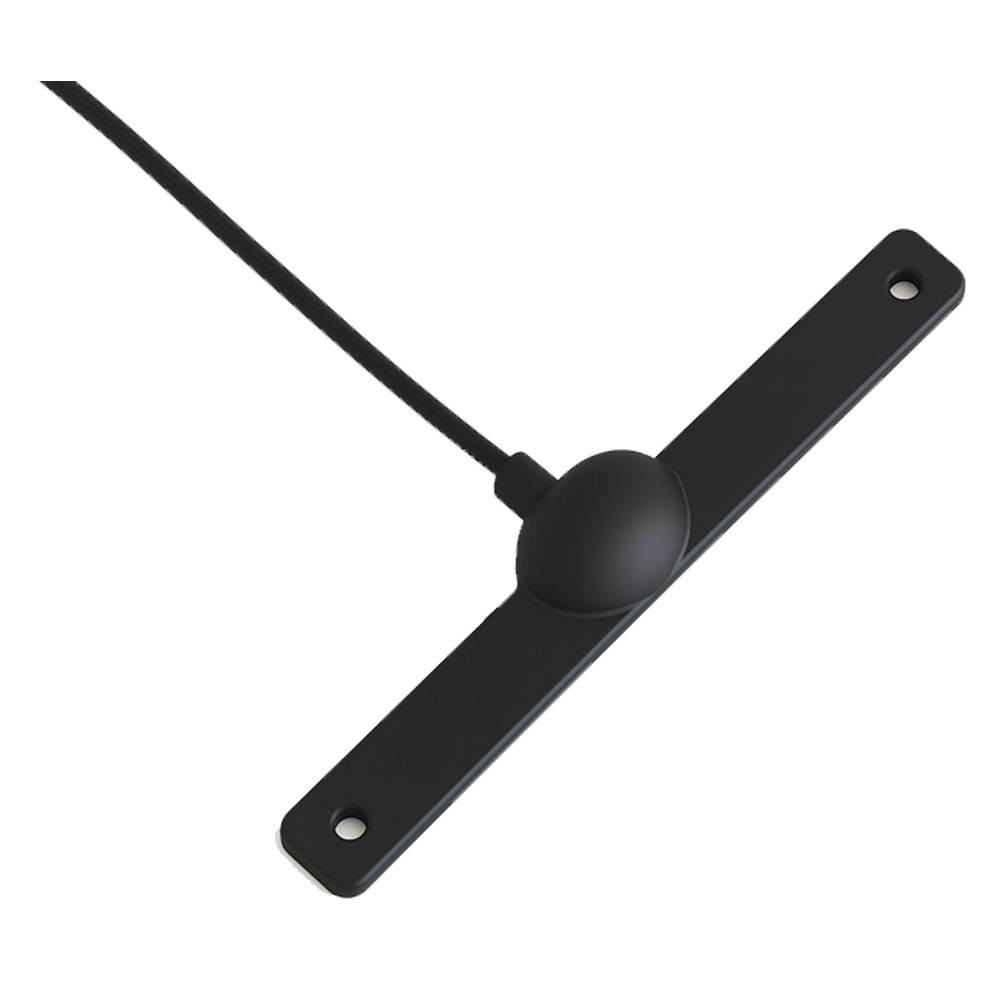

The CX-MT03 is a compact UAV FPV transmission antenna designed for stable and reliable video and control signal performance. Its lightweight structure and optimized radiation pattern make it ideal for racing drones, RC aircraft, FPV goggles, and long-distance drone flight applications where signal consistency and minimal weight are critical.
