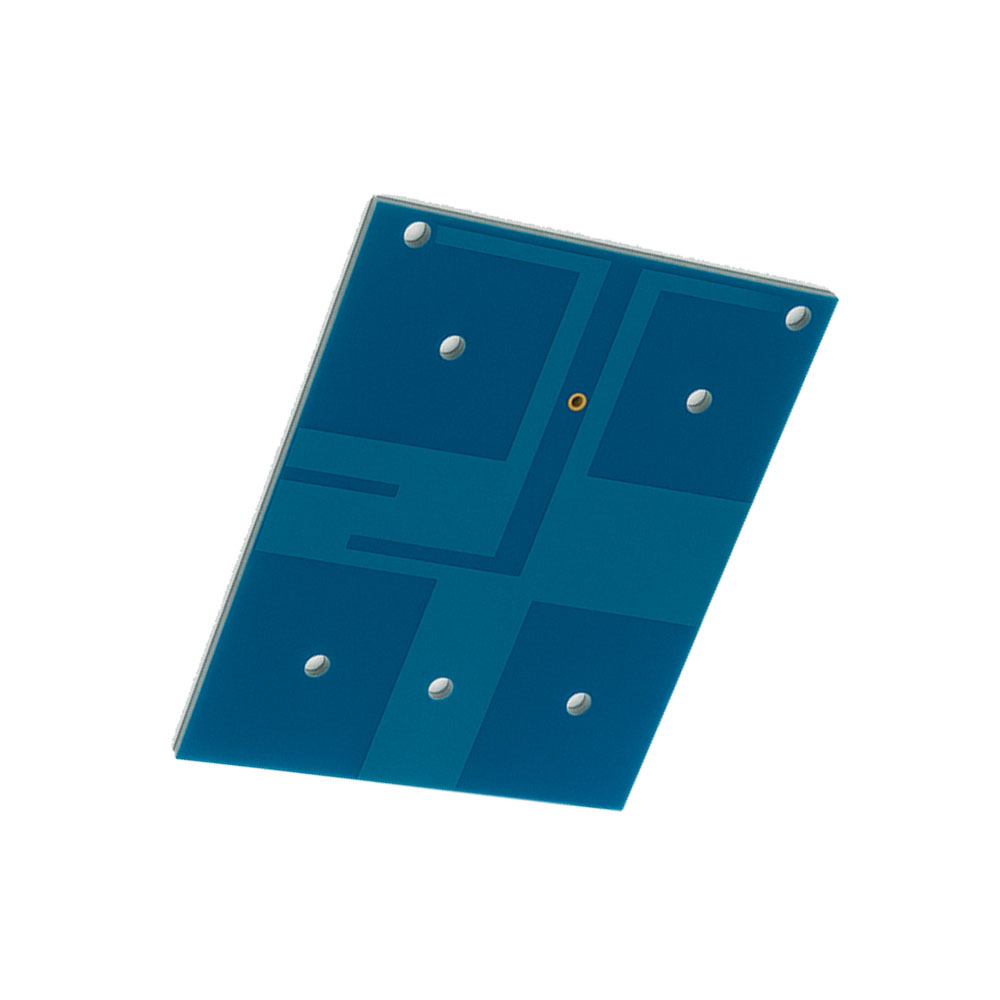

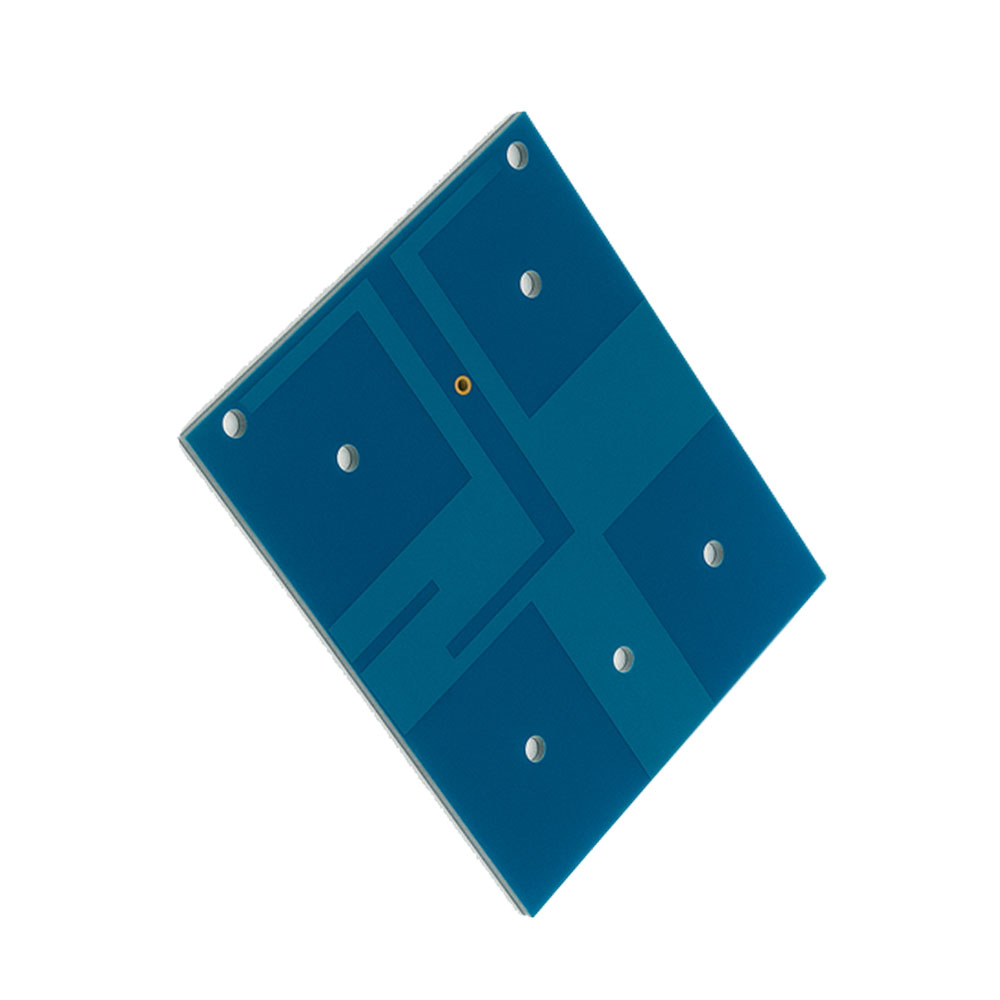

CX-PCB07

PCB Antenna

Frequency Range: 2.4GHz – 2.5GHz (ISM Band)
Gain: 3.0 dBi (Typical)
Impedance: 50Ω
Polarization: Linear
VSWR: ≤ 2.0
Connector Type: IPEX / U.FL (Optional)
Cable Length: 100mm (Customizable)
Material: FR4 PCB substrate
Dimensions: Compact, low-profile layout for embedded use
Operating Temperature: -40°C to +85°C
Mounting Type: Adhesive or direct PCB mount
Applications: IoT devices, wireless routers, smart home systems, Bluetooth modules, and telemetry equipment

Enquire Now

Download Specification

Descritption CX-PCB07

The PCB Antenna CX-PCB07 is a compact and efficient antenna designed for high-performance 2.4GHz wireless communication. Its PCB-integrated structure ensures stable performance, easy installation, and excellent radiation efficiency. Ideal for Wi-Fi, Bluetooth, Zigbee, and IoT-based applications where space-saving and reliability are essential.
