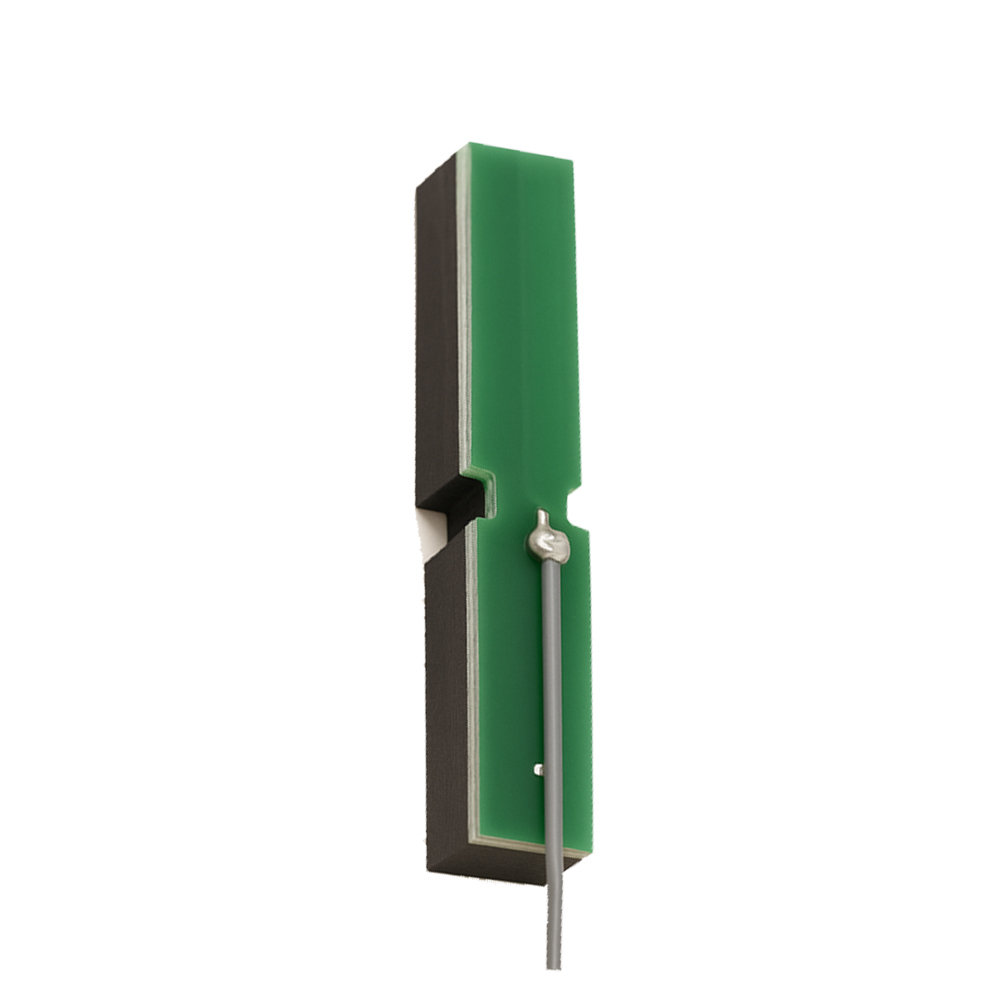

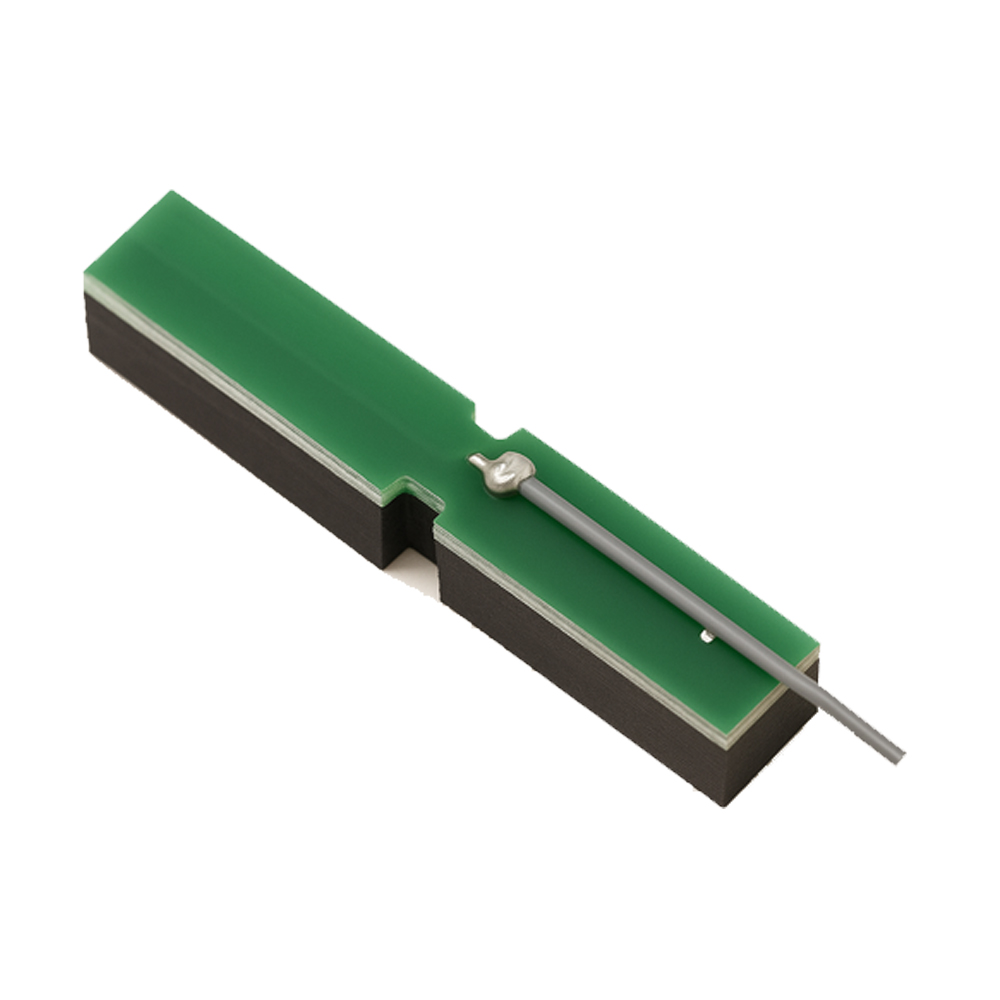

CX-PCB12

PCB Antenna

Frequency Range: 2.4GHz / 5.8GHz Dual Band
Gain: 2.0 dBi (2.4GHz) / 4.0 dBi (5.8GHz)
Impedance: 50 Ohm
VSWR: ≤ 2.0
Polarization: Linear
Connector Type: IPEX / U.FL (optional SMA)
Cable Length: 100mm (customizable)
Antenna Material: FR4 substrate with copper trace
Dimensions: Ultra-thin and lightweight for internal device mounting
Operating Temperature: -40°C to +85°C
Applications: Wi-Fi routers, Bluetooth modules, smart home devices, IoT systems, and M2M communication equipment.

Enquire Now

Download Specification

Descritption CX-PCB12

The PCB Antenna CX-PCB12 is a high-performance, compact antenna designed for 2.4GHz and 5GHz dual-band wireless applications. Engineered with precision on an FR4 substrate, it ensures stable signal transmission, high gain, and reliable performance for Wi-Fi, Bluetooth, and IoT connectivity in space-limited devices.
