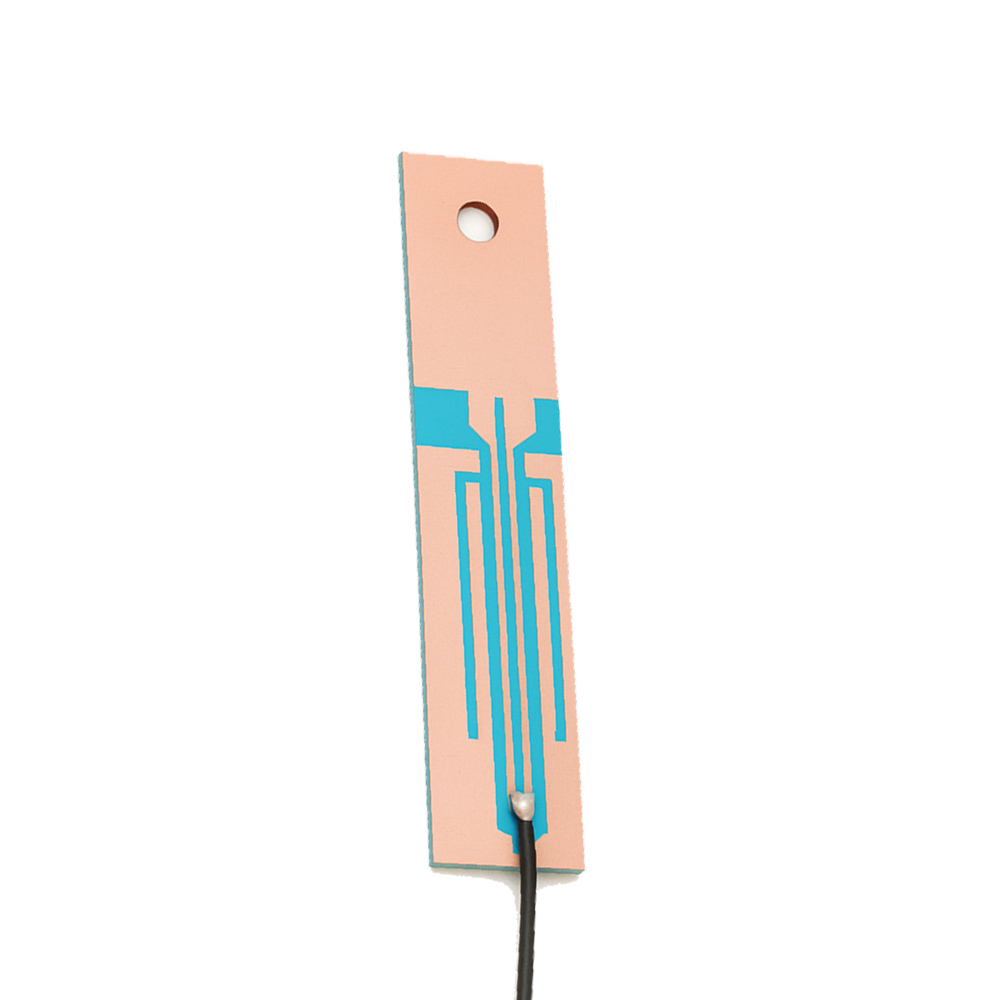

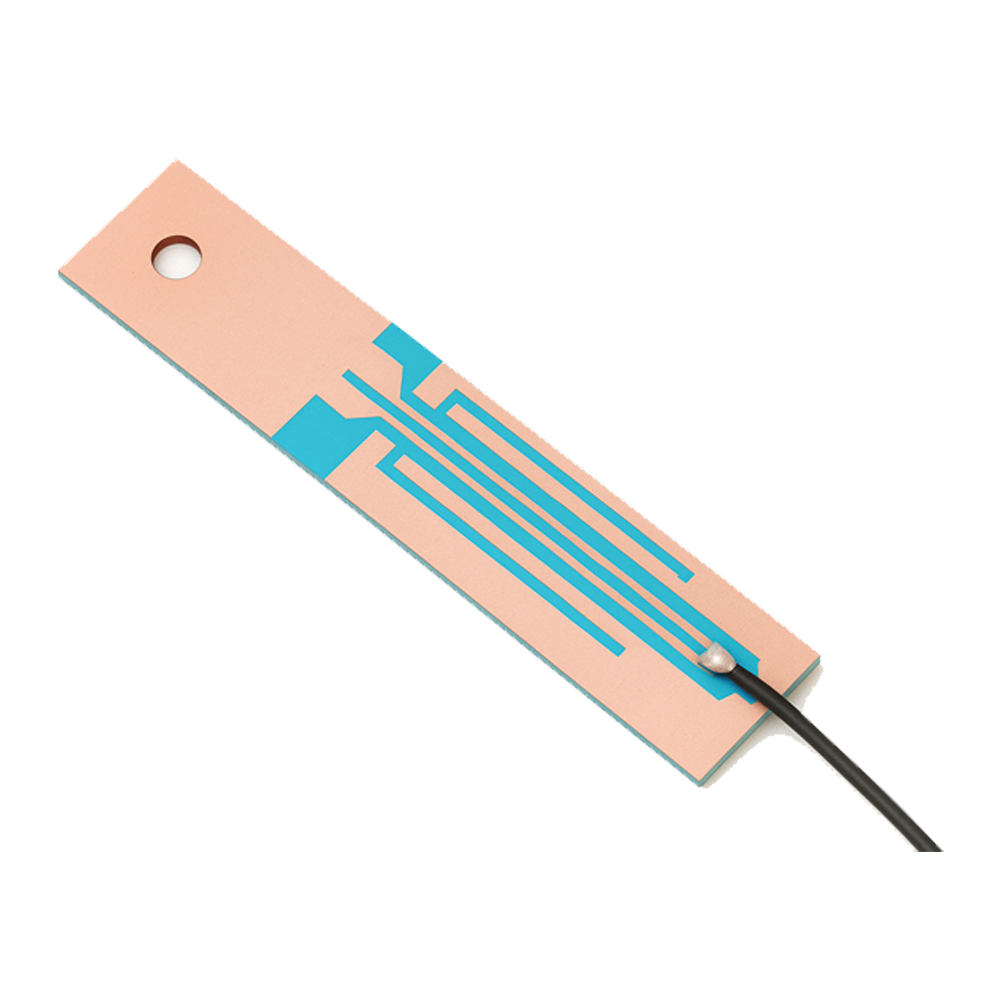

CX-PCB13

PCB Antenna

Frequency Range: 2.4GHz / 5.8GHz Dual Band
Gain: 2.5 dBi (2.4GHz) / 4.5 dBi (5.8GHz)
Impedance: 50 Ohm
VSWR: ≤ 2.0
Polarization: Linear
Connector Type: IPEX / U.FL (optional SMA)
Cable Length: 100mm (customizable)
Material: FR4 PCB with copper trace
Dimensions: Compact and lightweight for embedded designs
Operating Temperature: -40°C to +85°C
Mounting Type: Adhesive or screw mount
Applications: Wi-Fi access points, Bluetooth devices, wireless sensors, routers, and industrial IoT terminals.

Enquire Now

Download Specification

Descritption CX-PCB13

The PCB Antenna CX-PCB13 is a compact, wideband PCB antenna optimized for 2.4GHz and 5GHz wireless communication systems. Designed with precision PCB etching for stable impedance and low VSWR, it delivers reliable performance and efficient signal radiation for IoT, Wi-Fi, and Bluetooth applications in space-constrained environments.
