CX-AP24A

UAV-FPW Antenna Drone Transmission

Frequency Range: 2400–2500 MHz (2.4 GHz ISM Band)
Polarization: Circular Polarized (RHCP/LHCP optional)
Gain: 5.0 dBi
VSWR: ≤ 1.5:1
Impedance: 50 Ω
Connector Type: SMA Male (Customizable)
Cable Type: RG141 / RG316, customizable length
Radiation Pattern: Omni-directional
Housing Material: Durable ABS with waterproof sealing
Dimensions: Compact, lightweight design for UAV integration
Operating Temperature: -40°C to +85°C
Mounting: Compatible with drone frames and FPV systems

Enquire Now

Download Specification

Descritption CX-AP24A

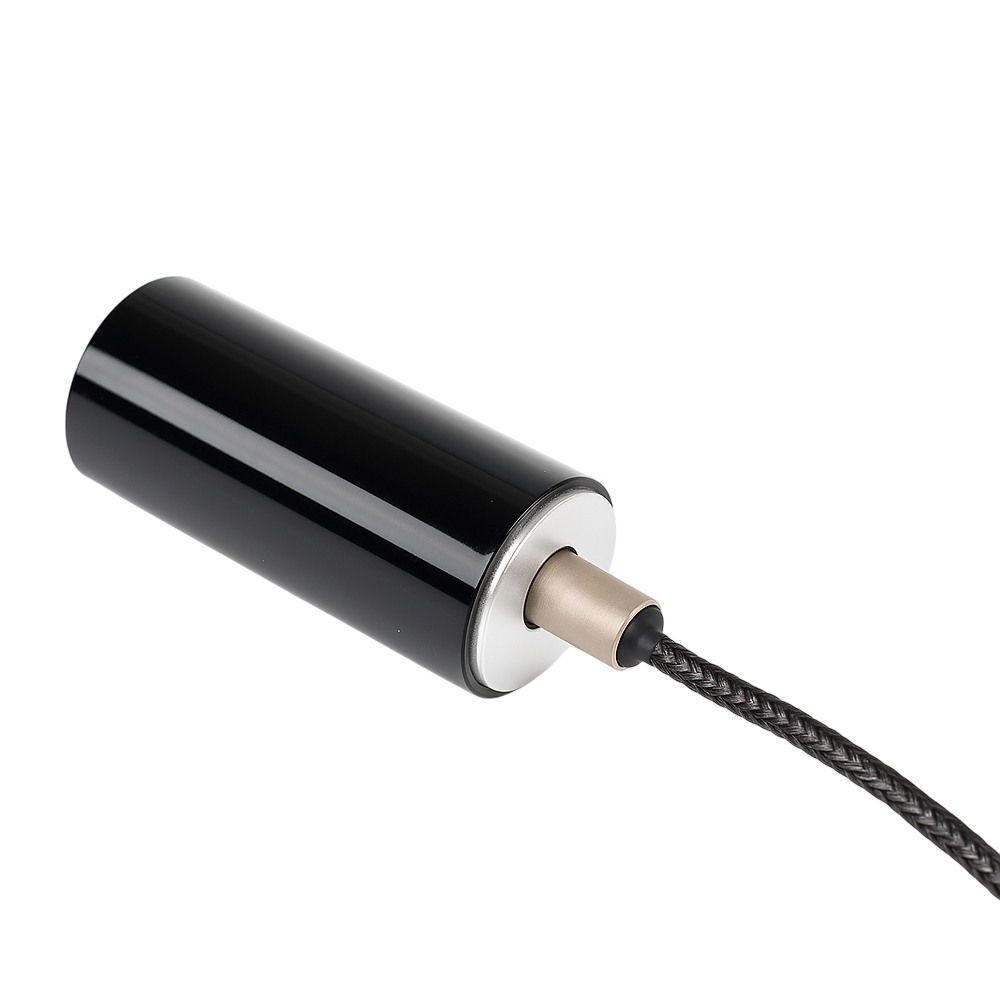

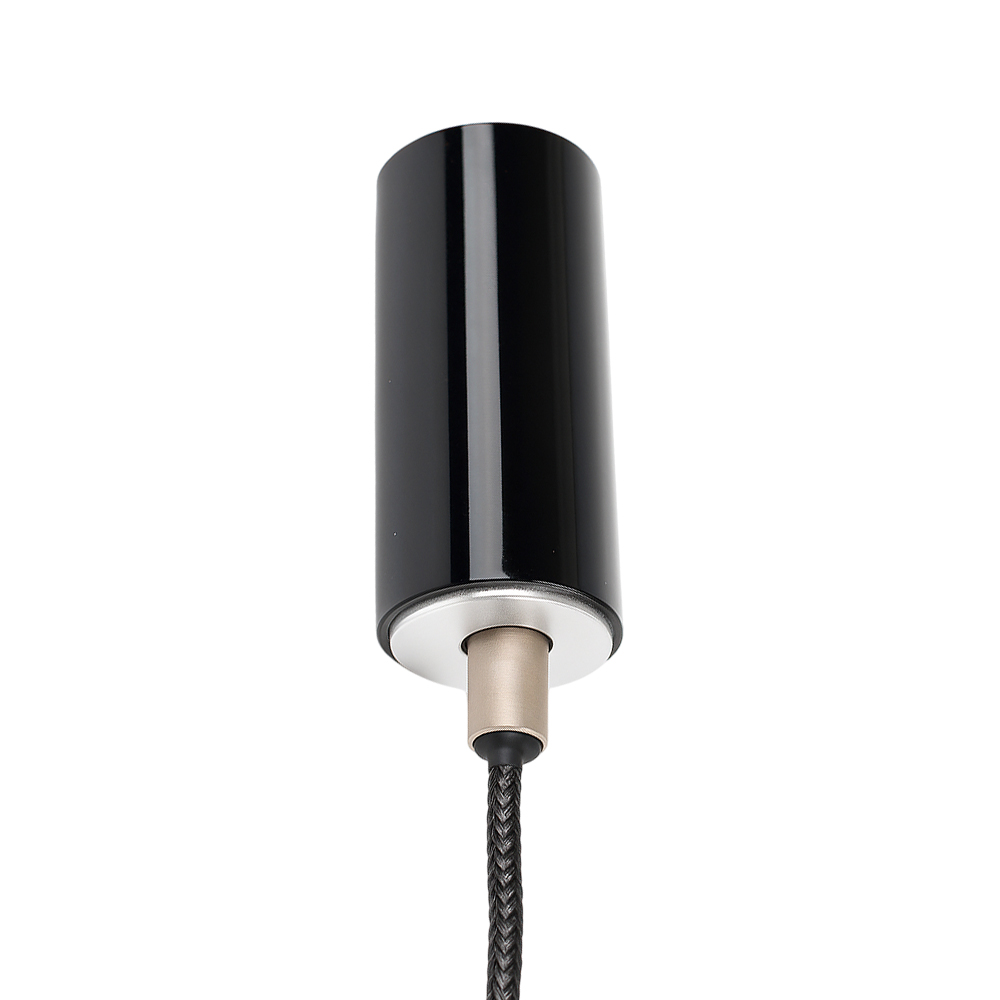

The CX-AP24A UAV-FPW Antenna is a high-performance circularly polarized antenna designed for drone communication, telemetry, and FPV transmission systems. With excellent gain stability and wide frequency compatibility, it ensures reliable signal integrity even under high-vibration flight conditions. Its compact, weather-resistant structure makes it ideal for UAVs, robotics, and wireless video applications.
