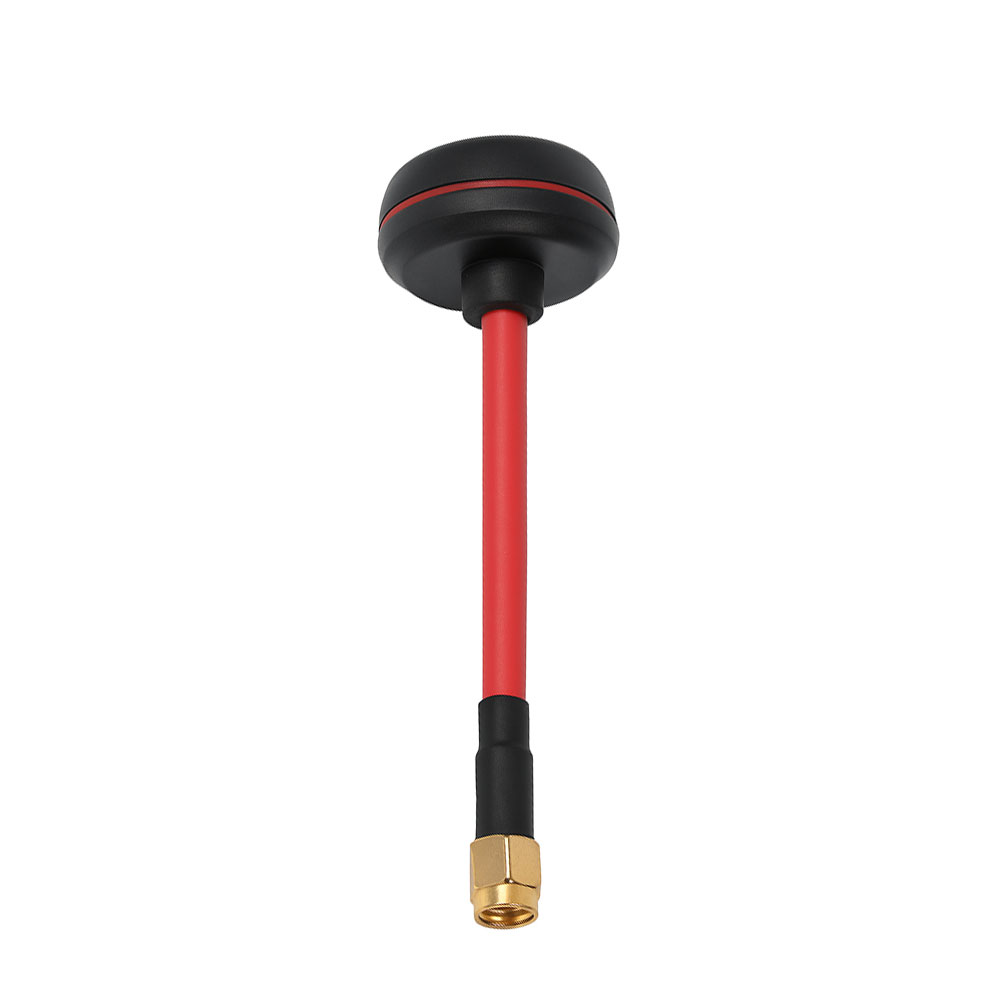

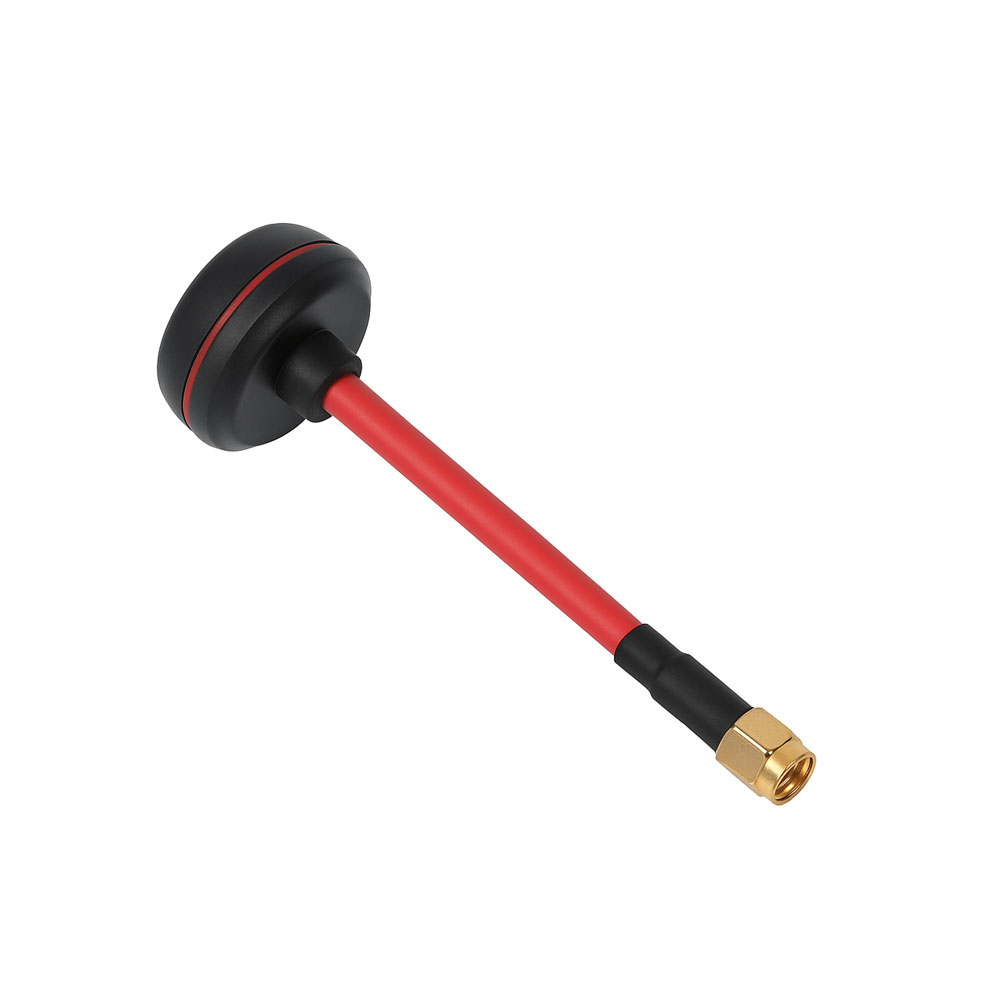

CX-AP72C

UAV-FPW Antenna Drone Transmission

Frequency Range: 5.8GHz
Polarization: Circular (RHCP / LHCP Optional)
Gain: 2.5dBi – 3.2dBi
VSWR: ≤ 1.5
Impedance: 50Ω
Radiation Pattern: Omni-directional
Connector Type: SMA or RP-SMA (Gold Plated)
Cable Type: Low-loss RG Series / Semi-Rigid Optional
Cable Length: Custom 40mm – 120mm
Housing Material: Durable ABS / PC Composite
Weight: Ultra-light for UAV Payload Optimization
Operating Environment: Outdoor / Weather-Resistant

Enquire Now

Download Specification

Descritption CX-AP72C

The CX-AP72C UAV FPV Antenna is a lightweight, circularly polarized antenna designed for high-reliability drone video transmission. It minimizes multipath interference and signal loss, ensuring clear and stable FPV image quality even in complex flight environments. Ideal for FPV racing drones, UAV communication systems, and long-range video transmitters.
