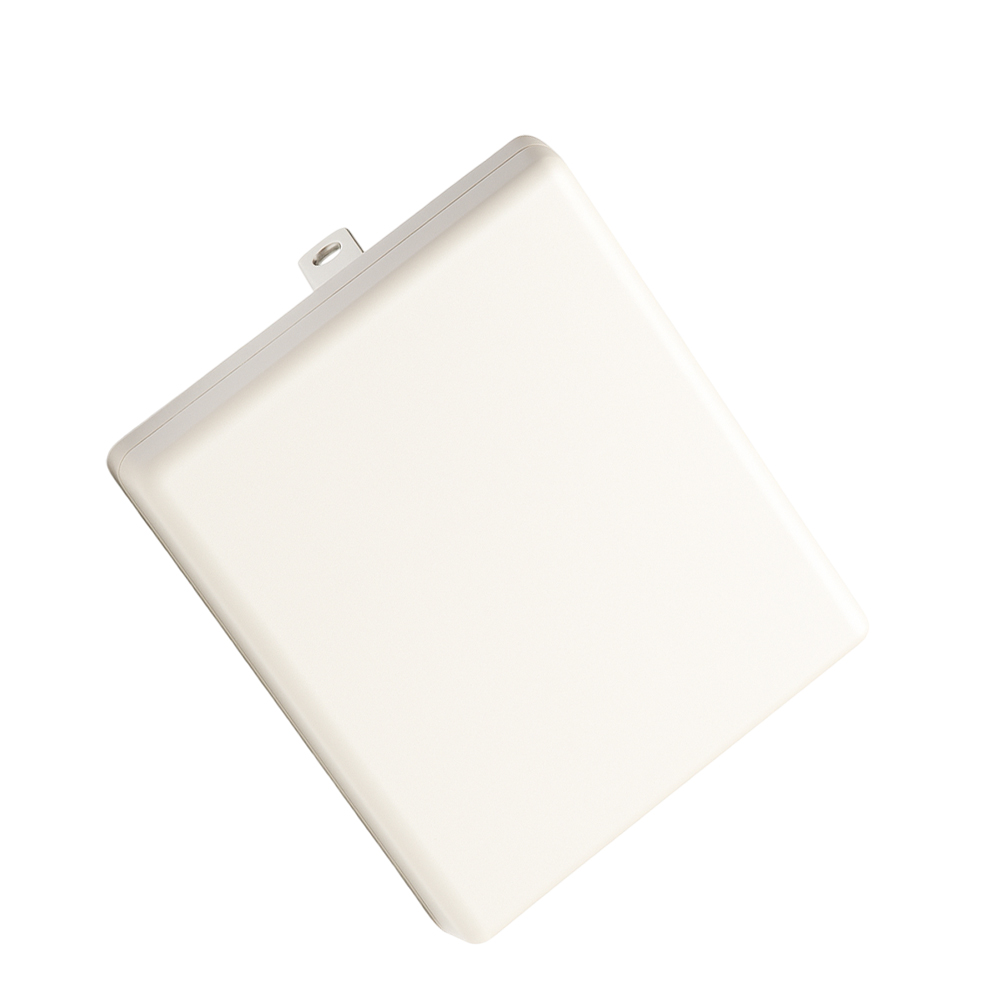

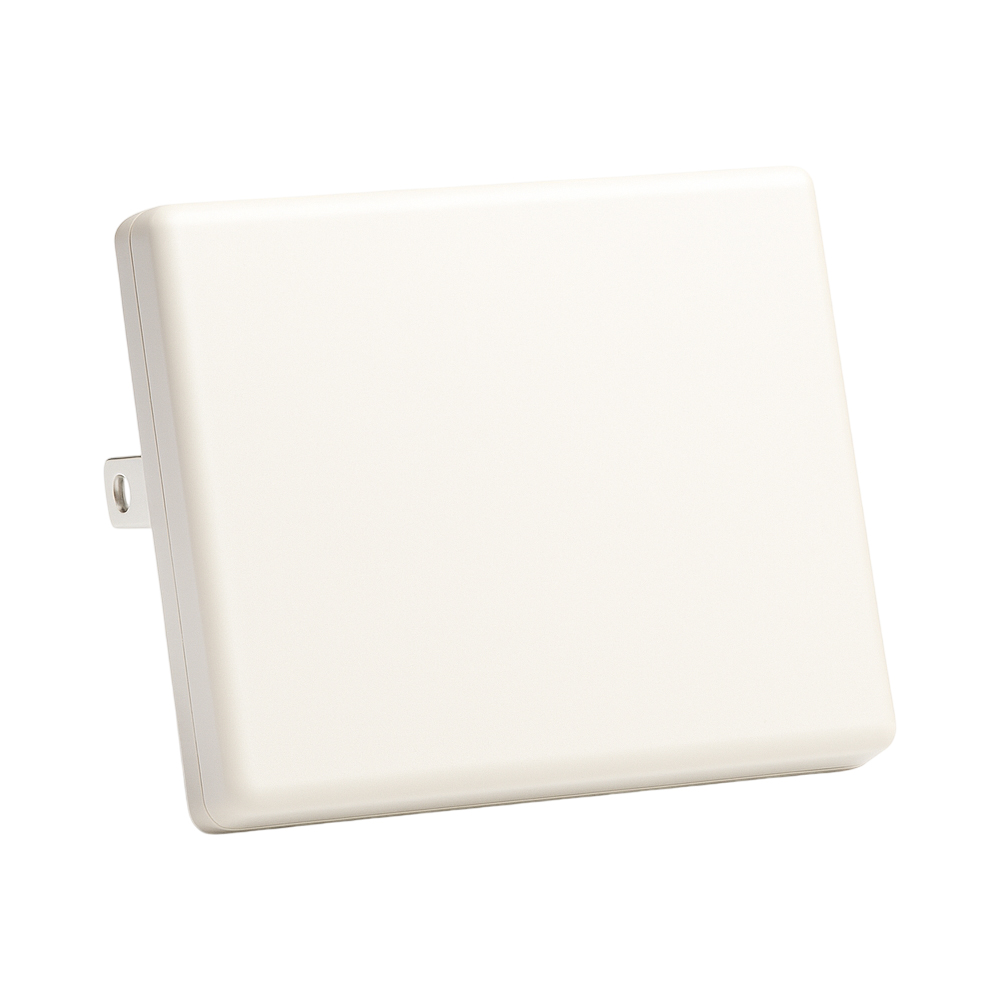

CX-DF01

Panel Antenna

Frequency Range: approx. 700-3000 MHz (or dual / multi-band as required)
Gain: ~ 8-12 dBi
Impedance: 50 Ω
VSWR: ≤ 2:1 across the operating band
Polarization: Linear (Vertical or Horizontal)
Connector Type: N-female (weather sealed)
Beamwidth: ~ 60° horizontal / ~ 40° vertical (approximate)
Front-to-Back Ratio: ≥ 20 dB
Power Handling: nominally moderate (for reception / low power TX)
Mechanical / Environmental: IP65 or better for outdoor use
Mounting: pole or wall mount, with bracket included

Enquire Now

Download Specification

Descritption CX-DF01

The Panel Antenna CX-DF01 is a directional, flat-panel antenna designed for fixed installations such as on poles, rooftops, or building facades. It delivers focused signal gain over a specified frequency band, with rugged construction suited for outdoor environments. Ideal for improving coverage or linking network segments in telecom, broadband, or data-communication systems.
