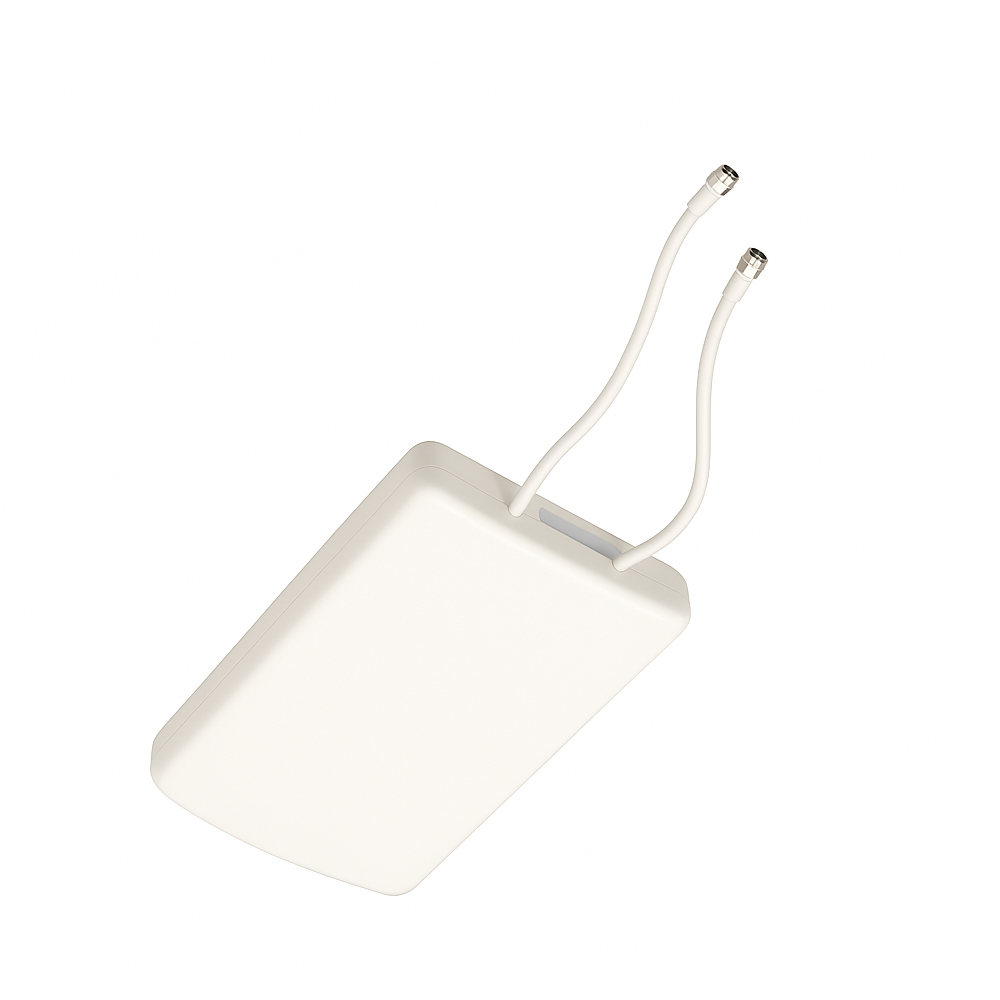

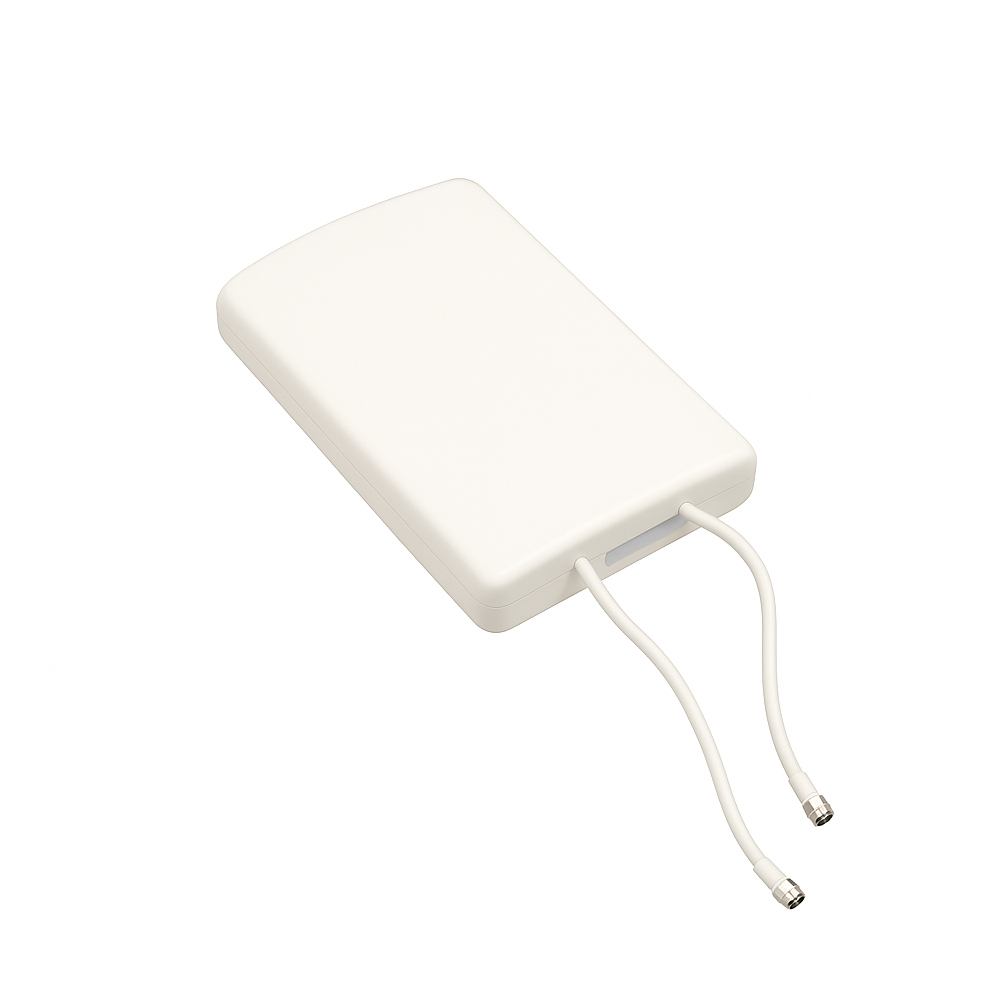

CX-DF05

Panel Antenna

Frequency Range: 698 – 3800 MHz (supports LTE / 4G / 5G sub-6 GHz)
Gain: ~11 – 16 dBi
Impedance: 50 Ω
VSWR: ≤ 2:1 across bands
Polarization: Dual (±45°) or Vertical / Horizontal
Connector Type: 2 × N-female (weather-sealed)
Beamwidth (HPBW): ~65° horizontal / 65° vertical
Front-to-Back Ratio: ≥ 20 dB
Maximum Input Power: up to 100 W
Environmental Protection: IP65, UV-resistant radome, corrosion-resistant hardware
Operating Temperature: –40 °C to +70 °C
Mounting Options: Wall or pole mount (Ø30–50 mm), with adjustable bracket
Design: Low-profile panel to reduce wind load, lightweight for easy installation

Enquire Now

Download Specification

Descritption CX-DF05

The CX-DF05 Panel Antenna is a compact, high-gain directional antenna optimized for outdoor wireless communication. With wideband support and strong directional performance, it enhances coverage, minimizes interference, and ensures stable connectivity. Its rugged, weatherproof design makes it suitable for telecom networks, fixed wireless access, and broadband backhaul applications.
