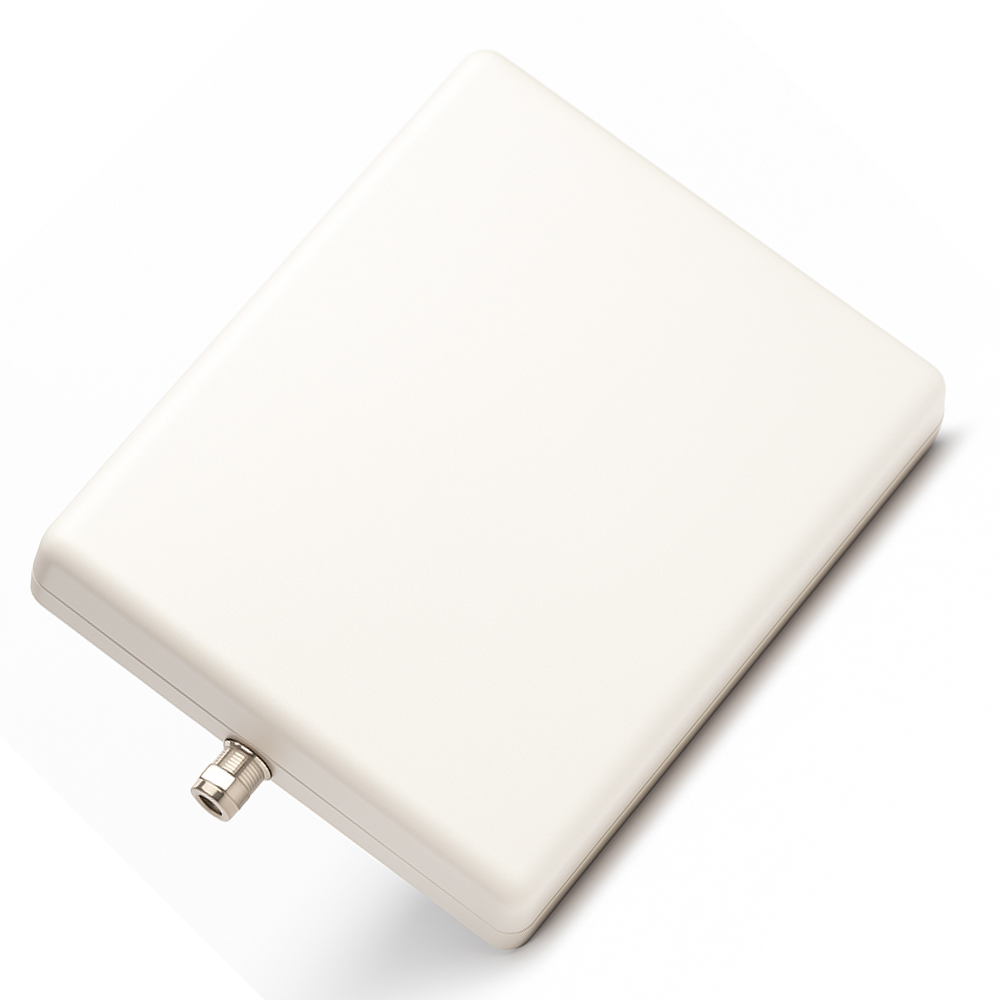

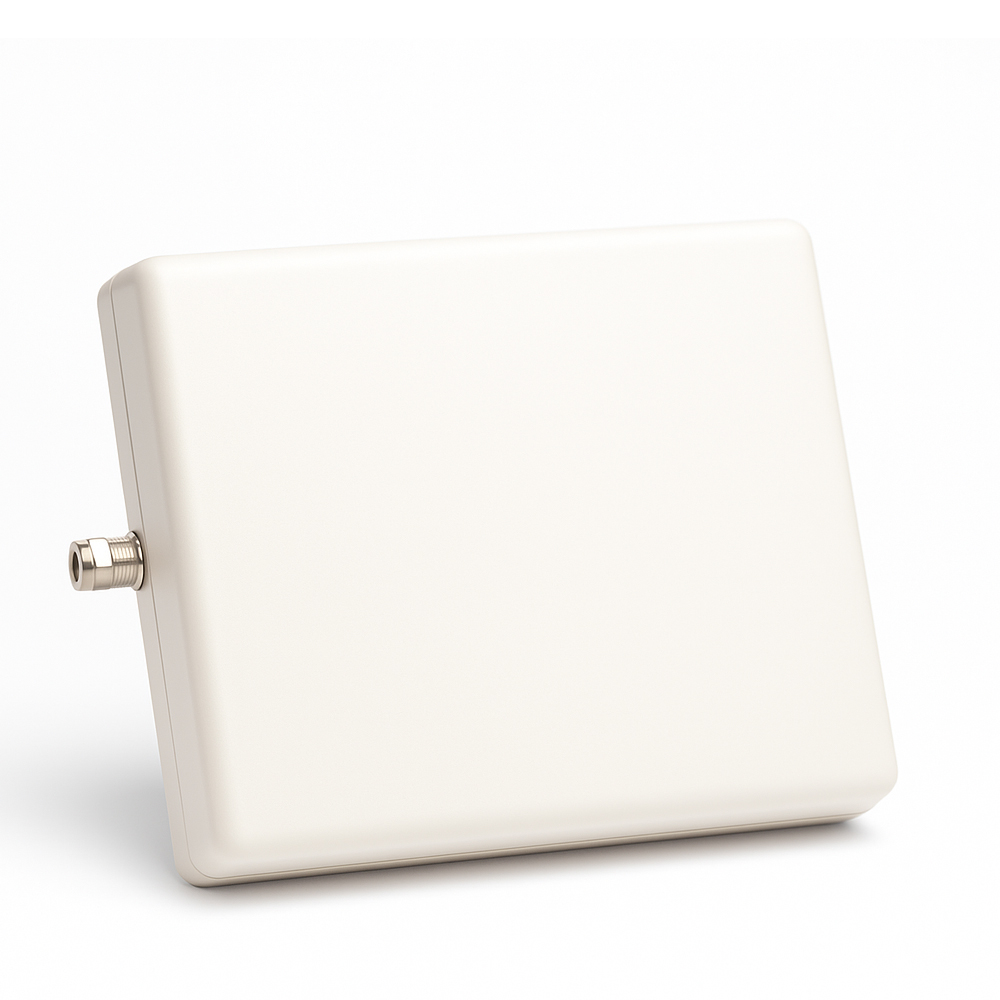

CX-DF02

Panel Antenna

Frequency Range : 698-2700 MHz (or dual- / multi-band covering LTE/4G/5G sub-6GHz)
Gain : ~10-14 dBi
Impedance : 50 Ω
VSWR : ≤ 2:1 across operating bands
Polarization : Linear (Horizontal / Vertical) — possibly dual-polarized or slant-45°
Connector : N-female (weather-sealed) or 2×N if dual polarization
Beamwidth : Approx. 70-80° horizontal / 60-80° vertical (half-power)
Front-to-Back Ratio : ≥ 20-25 dB
Maximum Input Power : ~50-100 W (depending on design)
Mechanical / Environmental : IP65 or better rating; robust radome; corrosion-resistant mounting brackets
Operating Temperature : -40°C to +70°C
Mounting : Mast or wall mount; suitable for poles of Ø30-50 mm
Weight & Dimensions : ~1-2 kg; panel depth should be compact to reduce wind load

Enquire Now

Download Specification

Descritption CX-DF02

The Panel Antenna CX-DF02 is a high-performance directional panel antenna designed for outdoor or rooftop mounting. It offers improved gain and broader frequency coverage, delivering strong, focused signal strength with low back-lobe interference. Built to withstand harsh weather, it is ideal for telecom, broadband backhaul, and fixed wireless access applications.
