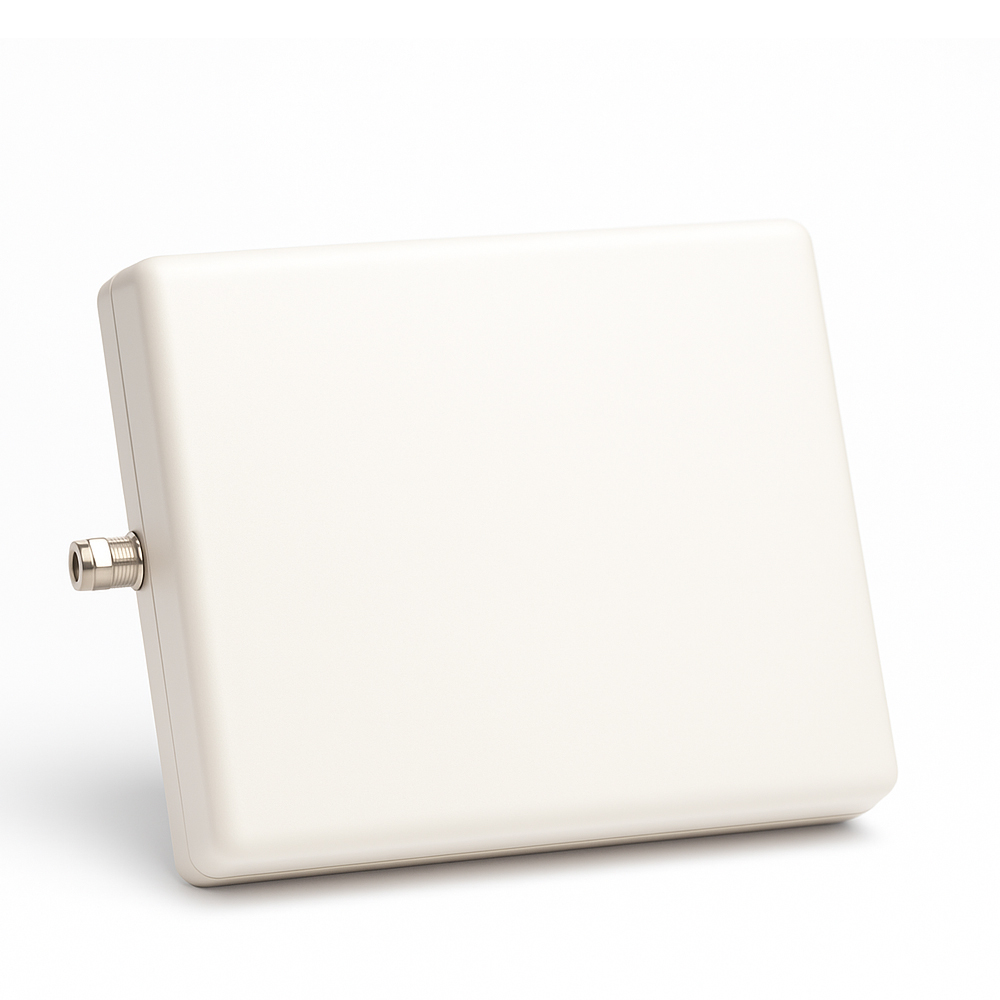

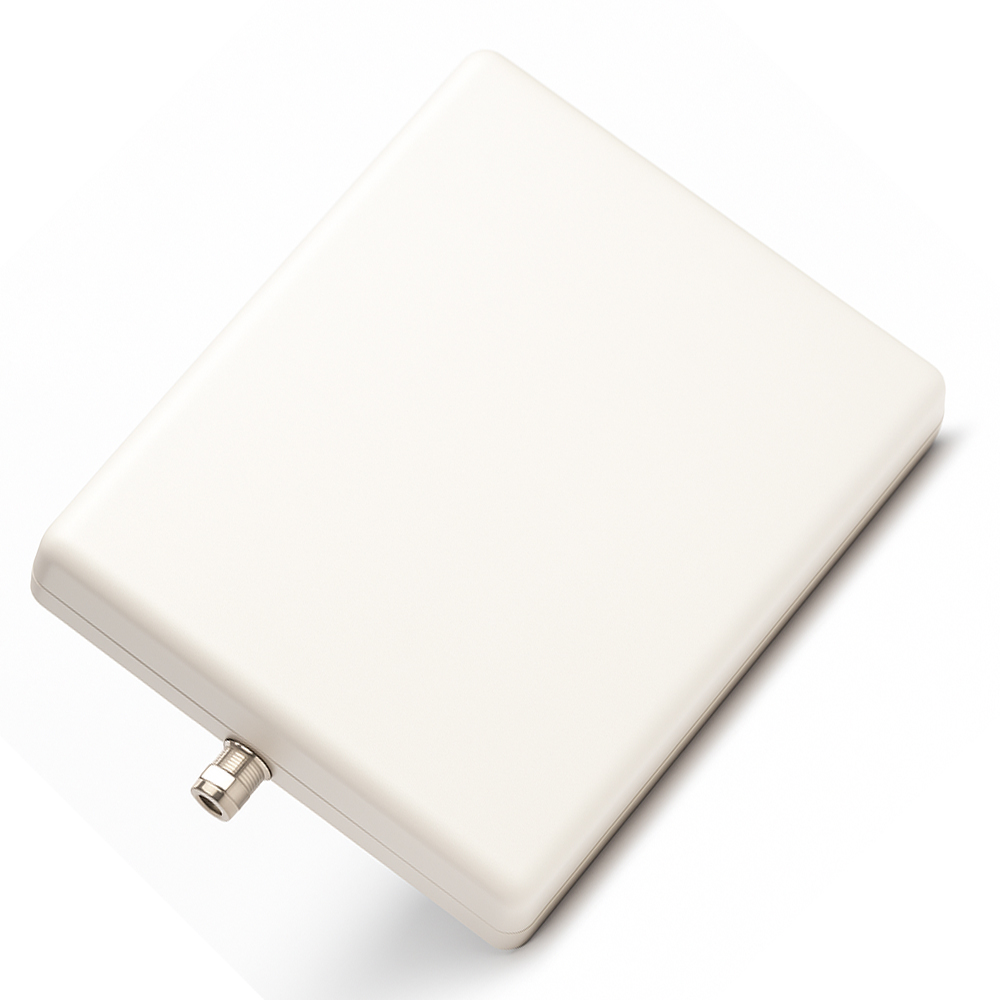

CX-DF03

Panel Antenna

Frequency Range: 698 – 3800 MHz (supports 2G / 3G / 4G / 5G sub-6 GHz)
Gain: ~12 – 15 dBi
Impedance: 50 Ω
VSWR: ≤ 2:1
Polarization: Linear (Vertical / Horizontal) or ±45° dual-polarized
Connector: 1× or 2× N-female (weather-sealed)
Beamwidth (HPBW): ~65° horizontal / 65° vertical
Front-to-Back Ratio: ≥ 20 dB
Maximum Input Power: 100 W
Environmental Rating: IP65; UV-resistant radome; corrosion-resistant hardware
Operating Temperature: –40 °C to +70 °C
Mounting: Mast or wall mount; pole diameter Ø30–50 mm
Weight & Dimensions: Lightweight, low-profile panel design to reduce wind load

Enquire Now

Download Specification

Descritption CX-DF03

The CX-DF03 Panel Antenna is a high-gain directional antenna engineered for outdoor deployments. With stable performance across wide frequency bands, it ensures focused coverage, reduced interference, and reliable connectivity. Its weather-resistant construction and easy mounting system make it ideal for telecom operators, broadband backhaul, and fixed wireless access solutions.
