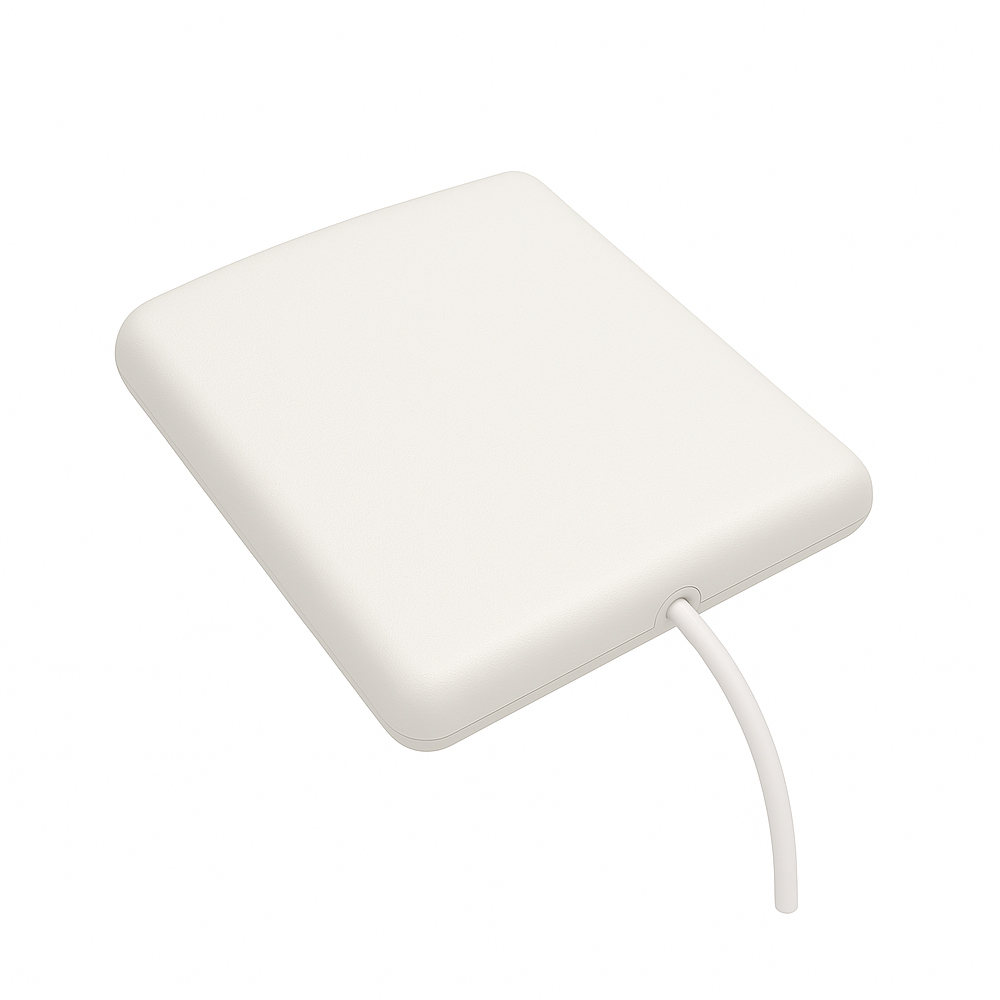

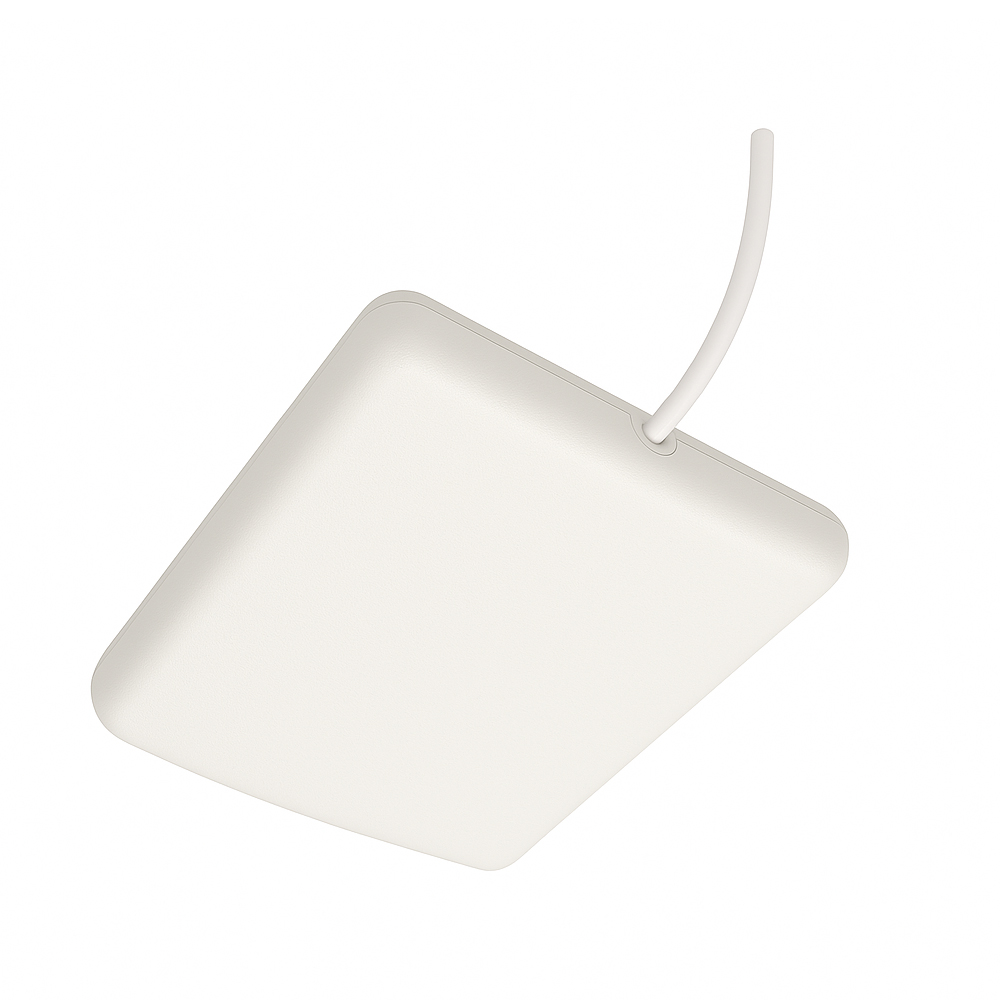

CX-DF06

Panel Antenna

Frequency Range: 698 – 3800 MHz (LTE / 4G / 5G sub-6 GHz support)
Gain: ~12 – 18 dBi
Impedance: 50 Ω
VSWR: ≤ 2:1
Polarization: Dual (±45°) or Vertical/Horizontal
Connector Type: 2 × N-female or 4.3-10 (weather-sealed)
Beamwidth (HPBW): ~65° horizontal / 65° vertical
Front-to-Back Ratio: ≥ 20 dB
Max Input Power: 100 W
Protection: IP65, UV-resistant radome, anti-corrosion mounting hardware
Operating Temperature: –40 °C to +70 °C
Mounting: Wall or pole mount, adjustable brackets for alignment
Design: Slim profile with reduced wind load

Enquire Now

Download Specification

Descritption CX-DF06

The CX-DF06 Panel Antenna is a high-performance directional antenna designed for outdoor applications in LTE, 4G, and 5G networks. With strong gain and optimized beamwidth, it enhances coverage and capacity while maintaining low interference. Its compact and weatherproof design ensures durability and reliable operation in diverse environments.
