CX-AP45A

UAV-FPW Antenna Drone Transmission

Frequency Range: 5.8 GHz
Gain: 14 dBi
Polarization: Circular (RHCP/LHCP optional)
VSWR: ≤ 1.5
Impedance: 50 Ω
Connector Type: SMA Male / RP-SMA optional
Cable Type: RG316 low-loss coaxial cable
Beamwidth: 60° Horizontal / 55° Vertical
Material: Durable ABS with weather-resistant coating
Operating Temperature: -40°C to +85°C
Mount Type: Panel or adhesive surface mount
Applications: Drone communication systems, FPV transmission, telemetry, and wireless video links.

Enquire Now

Download Specification

Descritption CX-AP45A

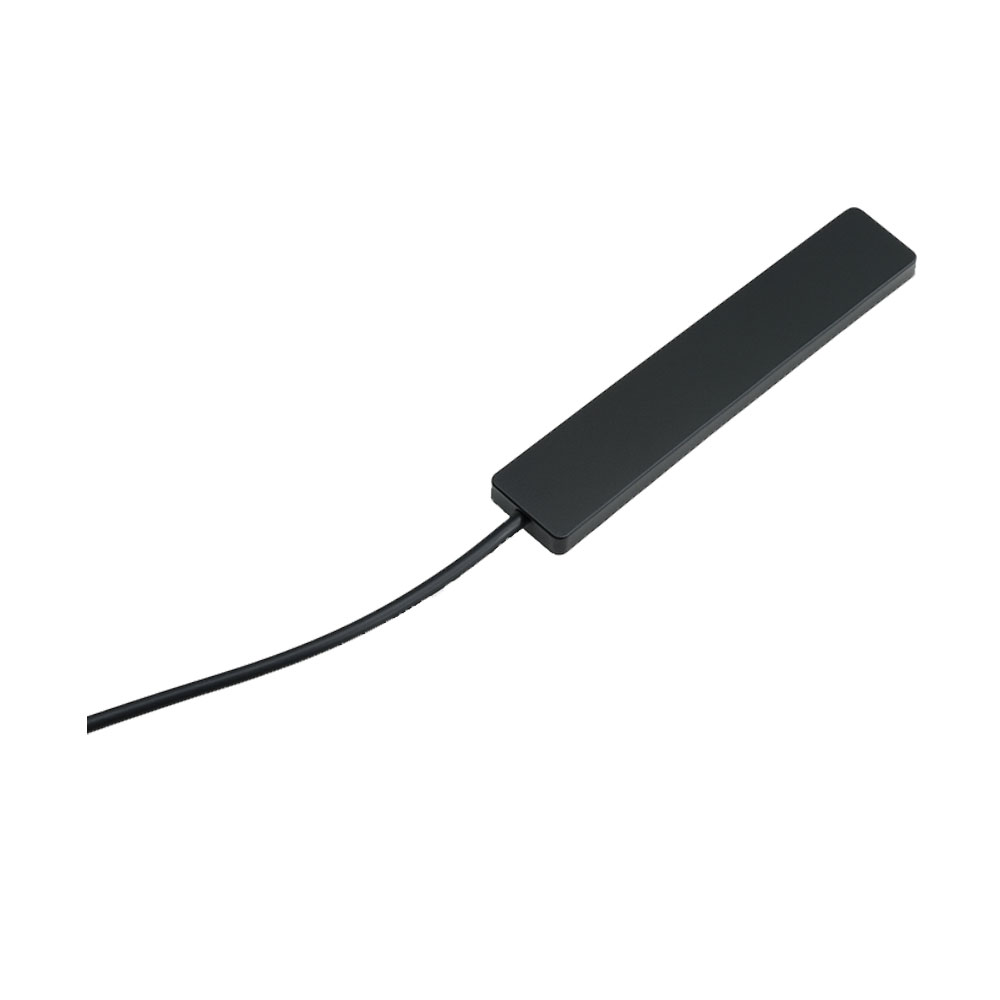

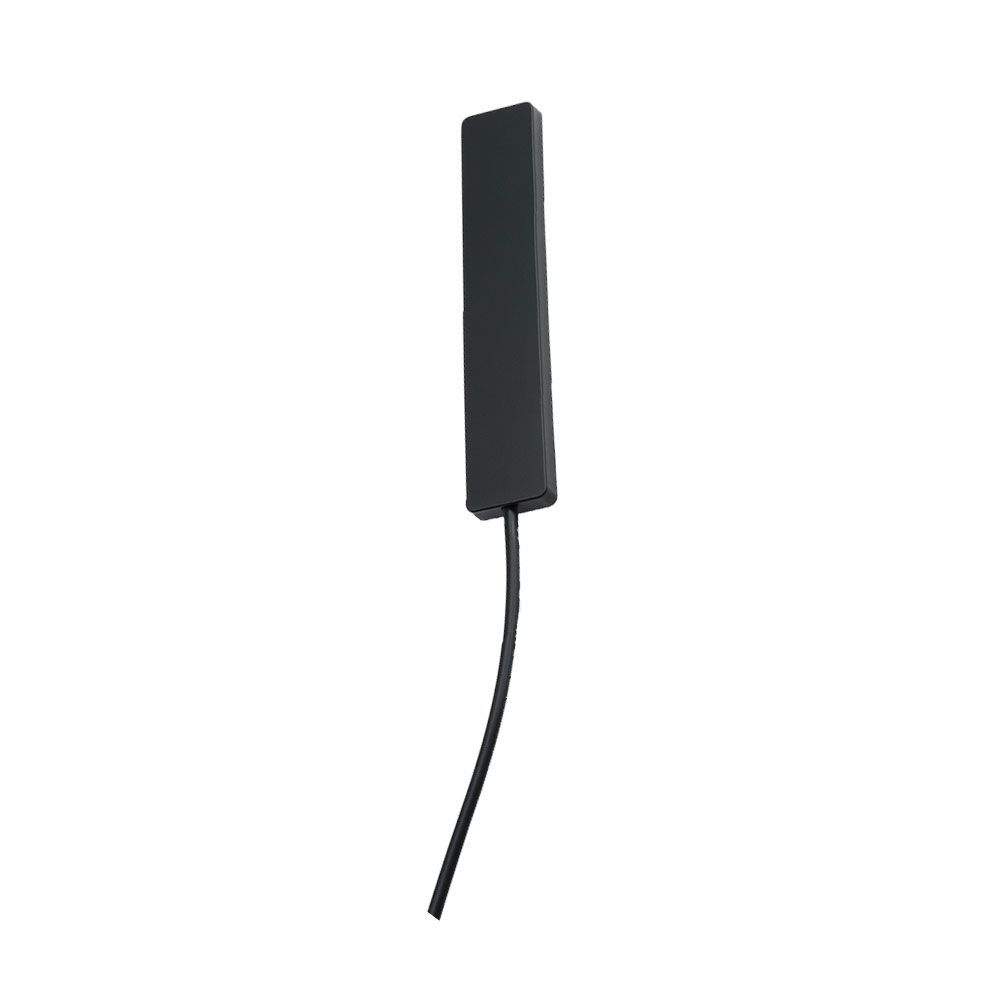

The UAV-FPW Antenna Drone Transmission CX-AP45A is a high-performance panel antenna designed for long-range UAV and FPV data transmission. It provides strong directional gain, excellent signal stability, and low interference, making it ideal for professional drone applications requiring reliable control and high-quality video links.
