CX-AP45B

UAV-FPW Antenna Drone Transmission

Frequency Range: 5.8 GHz
Gain: 14 dBi
Polarization: Circular (RHCP/LHCP optional)
VSWR: ≤ 1.5
Impedance: 50 Ω
Connector Type: SMA / RP-SMA
Cable Type: RG316 low-loss coaxial cable
Beamwidth: 60° Horizontal / 55° Vertical
Material: High-strength ABS radome with anti-interference coating
Operating Temperature: -40°C to +85°C
Mount Type: Flat panel / adhesive mount compatible
Applications: FPV systems, UAV transmission links, wireless video, and telemetry communication.

Enquire Now

Download Specification

Descritption CX-AP45B

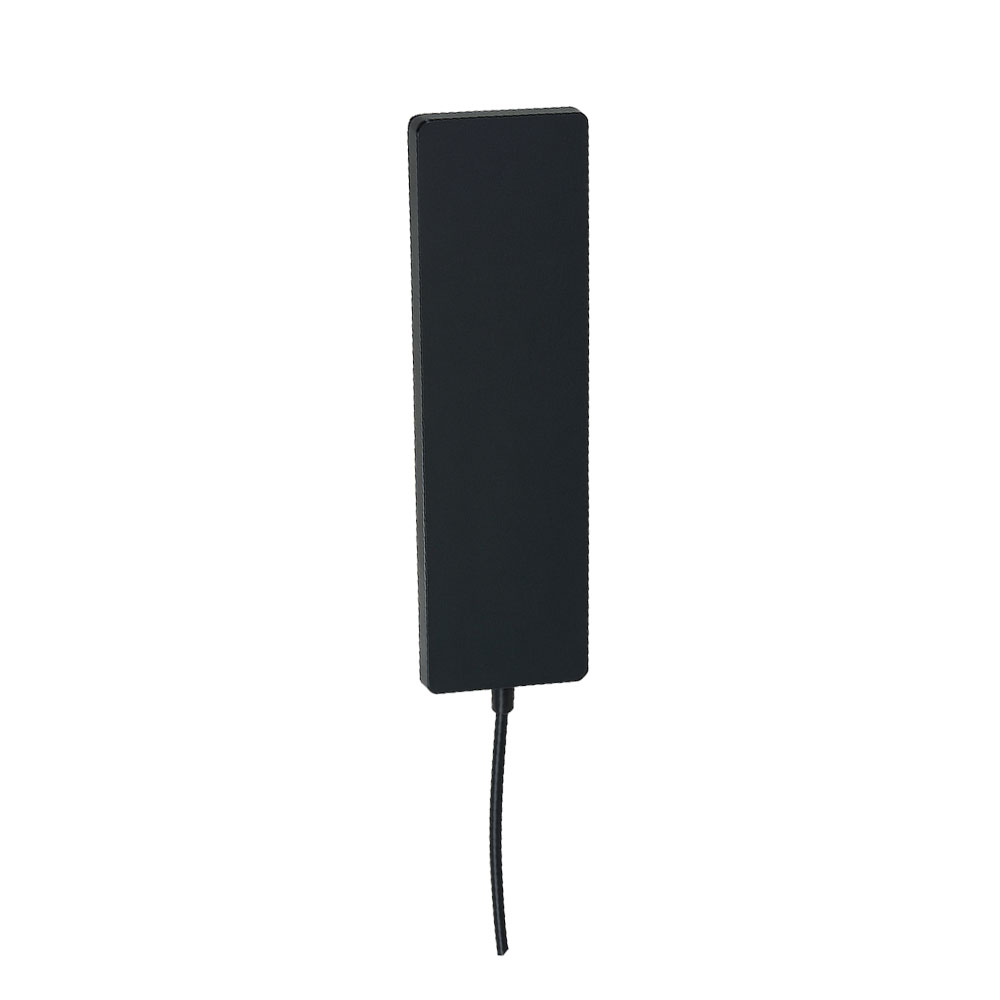

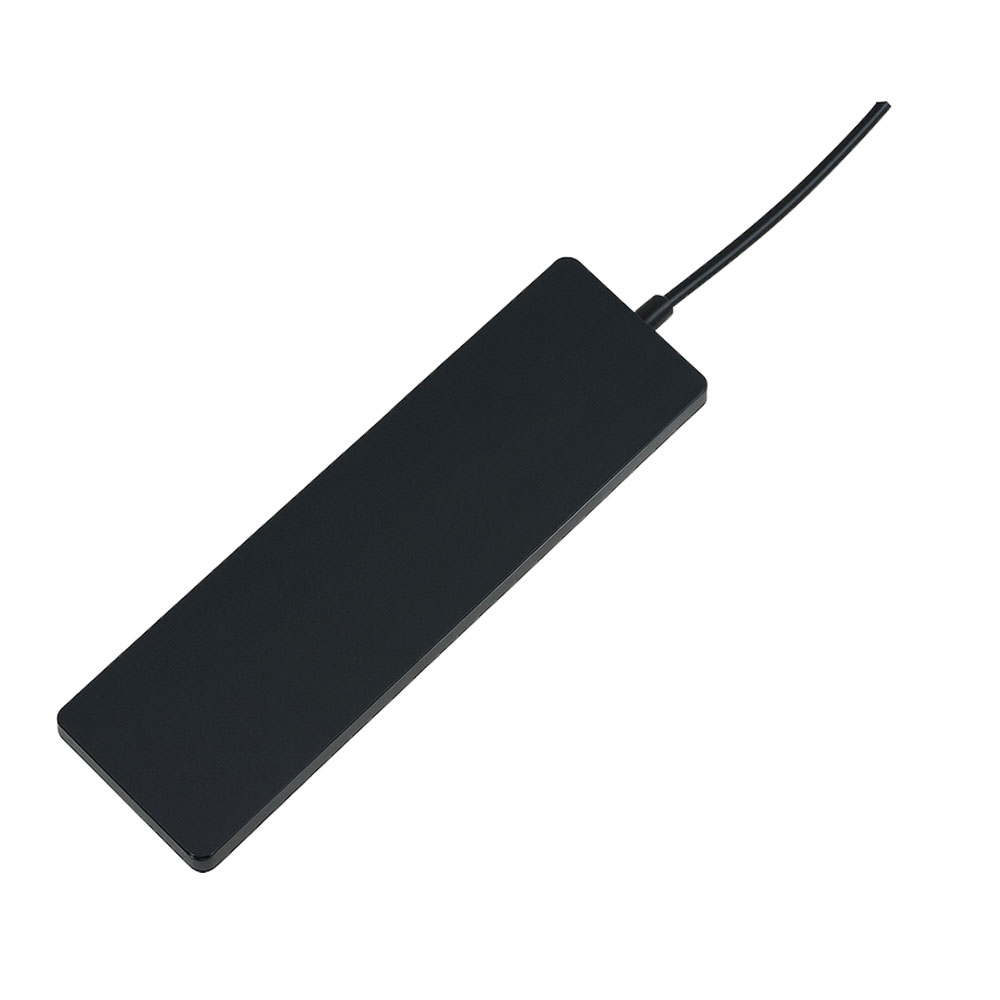

The UAV-FPW Antenna Drone Transmission CX-AP45B is a compact, high-efficiency flat-panel antenna engineered for reliable UAV and FPV data transmission. With a balanced design that delivers stable gain and wide coverage, it ensures low-latency communication and enhanced signal penetration, ideal for professional drone flight control and video downlink systems.
