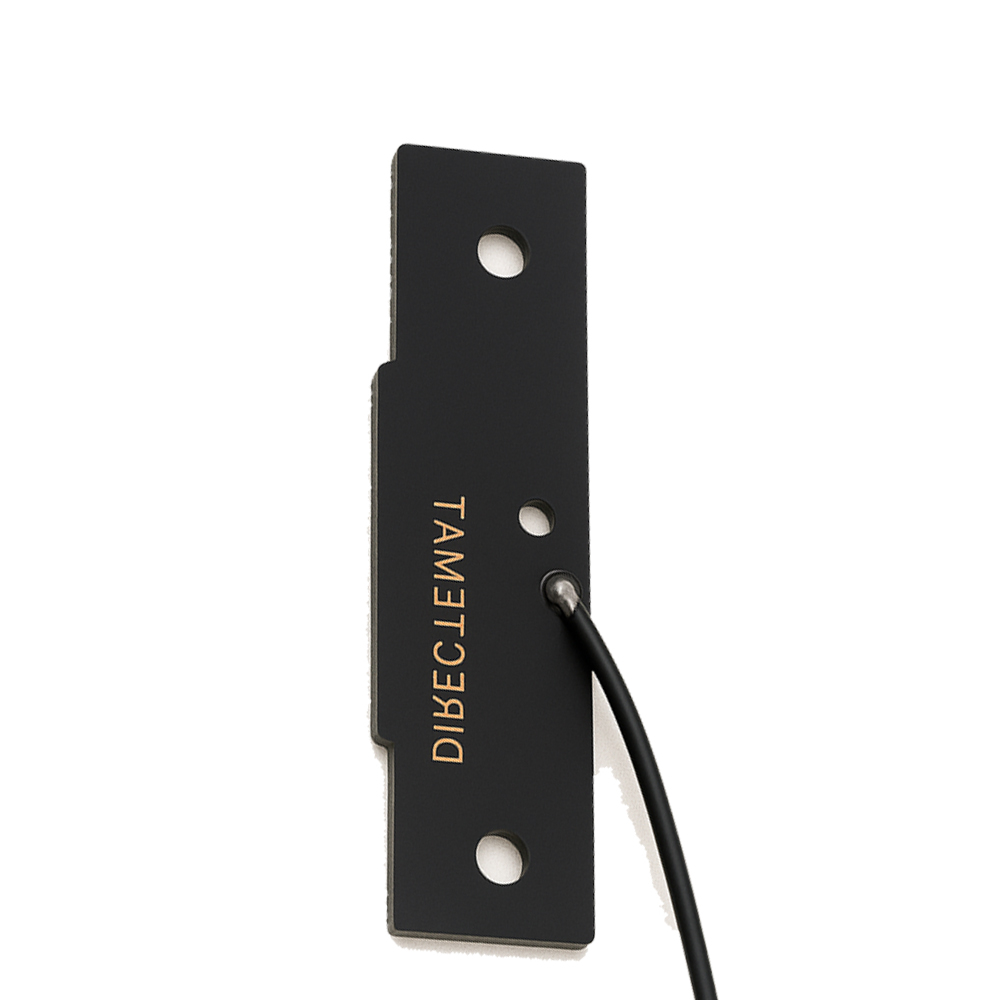

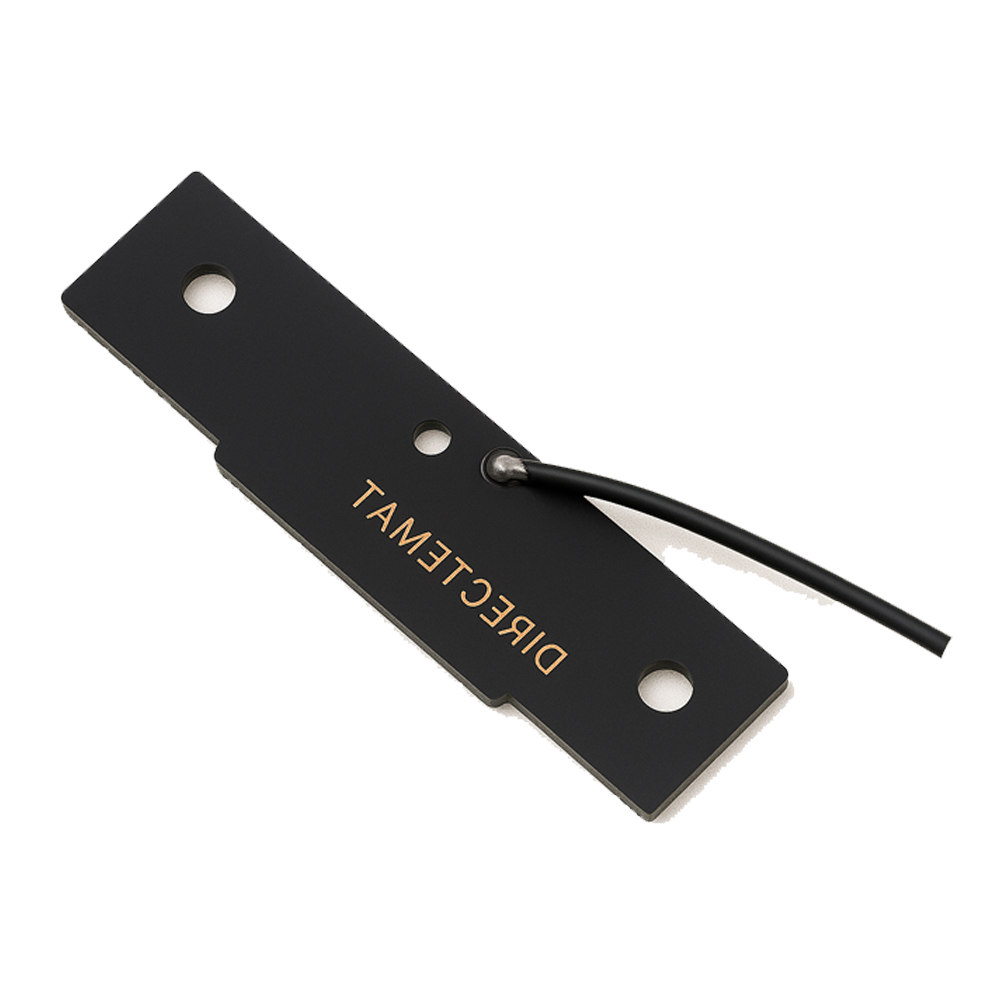

CX-PCB11

PCB Antenna

Frequency Range: 2.4GHz / 5GHz Dual Band
Gain: 2.0 dBi (2.4GHz) / 3.5 dBi (5GHz)
Impedance: 50 Ohm
VSWR: ≤ 2.0
Polarization: Linear
Connector Type: IPEX / U.FL (customizable)
Cable Length: 100mm (custom options available)
Antenna Material: FR4 PCB with black finish
Dimensions: Compact, lightweight structure for embedded use
Operating Temperature: -40°C to +85°C
Applications: Wi-Fi 5/6 routers, IoT devices, smart appliances, wireless modules, and M2M communication systems.

Enquire Now

Download Specification

Descritption CX-PCB11

The PCB Antenna CX-PCB11 is a compact and efficient dual-band antenna optimized for 2.4GHz and 5GHz wireless applications. Built on an FR4 substrate, it provides reliable performance and easy integration into IoT devices, Wi-Fi modules, and embedded systems requiring stable connectivity and minimal space usage.
